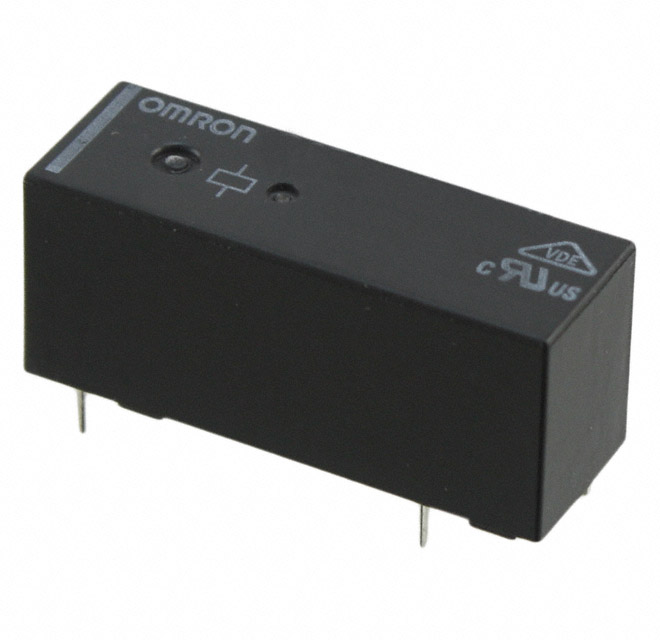

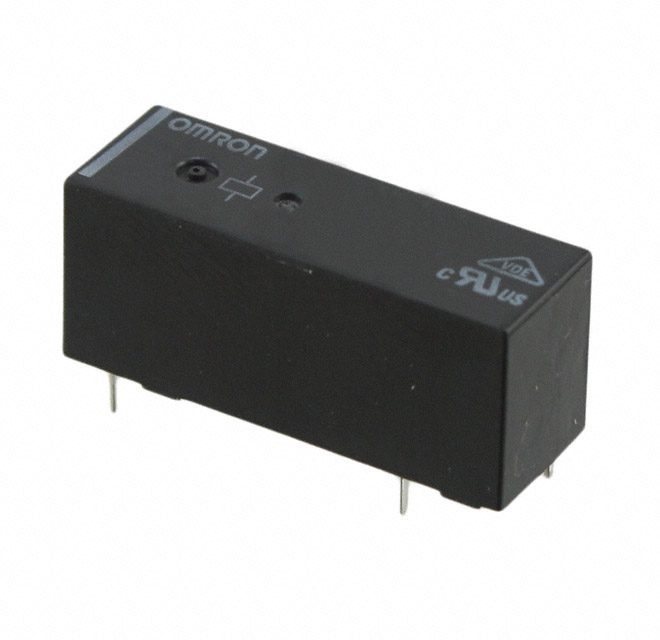

G6RL-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
POWER RELAYS - POWER PCB RELAY
| Part | Relay Type | Coil Current | Operate Time | Contact Material | Must Operate Voltage | Switching Voltage | Coil Resistance | Coil Type | Release Time | Contact Rating (Current) | Must Release Voltage | Mounting Type | Termination Style | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Load - Max Switching [Max] | Approval Agency | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | General Purpose | 36.7 mA | 10 ms | Silver Nickel (AgNi) | 4.2 VDC | 250 VAC | 163 Ohms | Non Latching | 5 ms | 10 A | 0.6 VDC | Through Hole | PC Pin | Sealed - Flux Protection | 85 °C | -40 °C | SPST-NO (1 Form A) | |||
 Omron Electronics Inc-EMC Div | General Purpose | 18.3 mA | 10 ms | Silver Nickel (AgNi) | 8.4 VDC | 250 VAC | 654 Ohms | Non Latching | 5 ms | 10 A | 1.2 VDC | Through Hole | PC Pin | Sealed - Flux Protection | 85 °C | -40 °C | SPST-NO (1 Form A) | 2500 VA | cURus VDE | 12 VDC |
Omron Electronics Inc-EMC Div | General Purpose | 5 mA | 10 ms | Silver Tin Indium (AgSnIn) | 33.6 VDC | 250 VAC | 9.6 kOhms | Non Latching | 5 ms | 10 A | 4.8 VDC | Through Hole | PC Pin | Sealed - Flux Protection | 85 °C | -40 °C | SPST-NO (1 Form A) | 2500 VA | cURus VDE | 48 VDC |
 Omron Electronics Inc-EMC Div | General Purpose | 9.2 mA | 10 ms | Silver Tin Indium (AgSnIn) | 16.8 VDC | 250 VAC | 2.62 kOhms | Non Latching | 5 ms | 10 A | 2.4 VDC | Through Hole | PC Pin | Sealed - Fully | 85 °C | -40 °C | SPST-NO (1 Form A) | 2500 VA | cURus VDE | 24 VDC |
Omron Electronics Inc-EMC Div | General Purpose | 73.3 mA | 10 ms | Silver Nickel (AgNi) | 2.1 VDC | 250 VAC | 40 Ohms | Non Latching | 5 ms | 10 A | 0.3 VDC | Through Hole | PC Pin | Sealed - Flux Protection | 85 °C | -40 °C | SPST-NO (1 Form A) | 2500 VA | cURus VDE |
