TLHW-88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

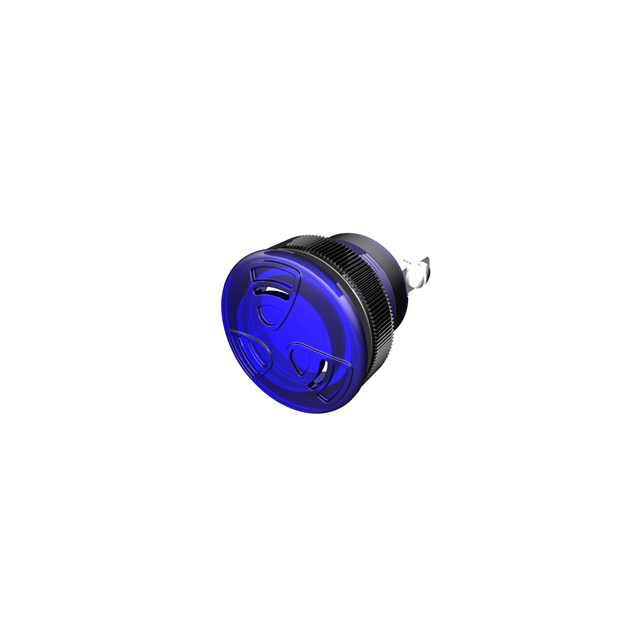

BUZZER 33.02MM PNL MNT
| Part | Mounting Type | Input Type | Sound Pressure Level (SPL) | Approval Agency | Size / Dimension [diameter] | Size / Dimension [diameter] | Ingress Protection | Driver Circuitry | Voltage Range [Max] | Voltage Range [Min] | Frequency | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Port Location | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Termination | Termination | Termination | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Panel Mount | DC | 103 dB | UL UR | 1.3 in | 33.02 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 2.9 kHz | 50 mA | 110 mA | Top | 29.97 mm | 1.18 in | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Warble Fast |
 Floyd Bell Inc | Panel Mount | DC | 103 dB | UL UR | 1.3 in | 33.02 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 2.9 kHz | 50 mA | 110 mA | Top | 29.97 mm | 1.18 in | 0.25 " | Quick Connect Tab | 6.35 mm | Warble Fast |
 Floyd Bell Inc | Panel Mount | DC | 103 dB | UL UR | 1.3 in | 33.02 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 2.9 kHz | 50 mA | 110 mA | Top | 29.97 mm | 1.18 in | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Slow Warble |
 Floyd Bell Inc | Panel Mount | DC | 103 dB | UL UR | 1.3 in | 33.02 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 2.9 kHz | 50 mA | 110 mA | Top | 29.97 mm | 1.18 in | 0.25 " | Quick Connect Tab | 6.35 mm | Slow Warble |
