PM20C04HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, SMT, DUAL ROW, 2.00
| Part | Number of Positions Loaded | Insulation Color | Contact Finish - Mating | Contact Type | Number of Rows [custom] | Contact Finish Thickness - Mating | Termination | Insulation Material | Fastening Type | Contact Shape | Mounting Type | Connector Type | Pitch - Mating | Pitch - Mating | Shrouding | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

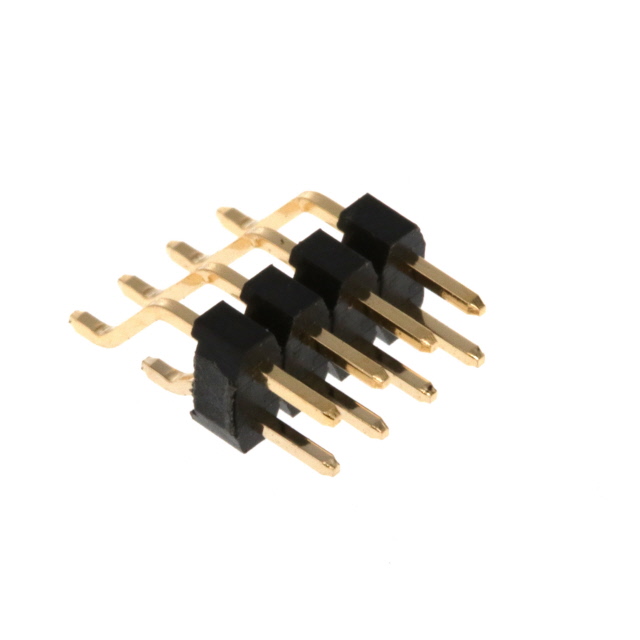

 METZ CONNECT USA Inc. | All | Black | Gold | Male Pin | 2 | Flash | Solder | Polyethylene | Push-Pull | Square | Right Angle Surface Mount | Header | 0.079 " | 2 mm | Unshrouded | 0.12 in | 3.05 mm | -40 C | 105 ░C | Copper Zinc | 8 | 2 mm | 0.079 in | 2 mm | 0.079 in | |

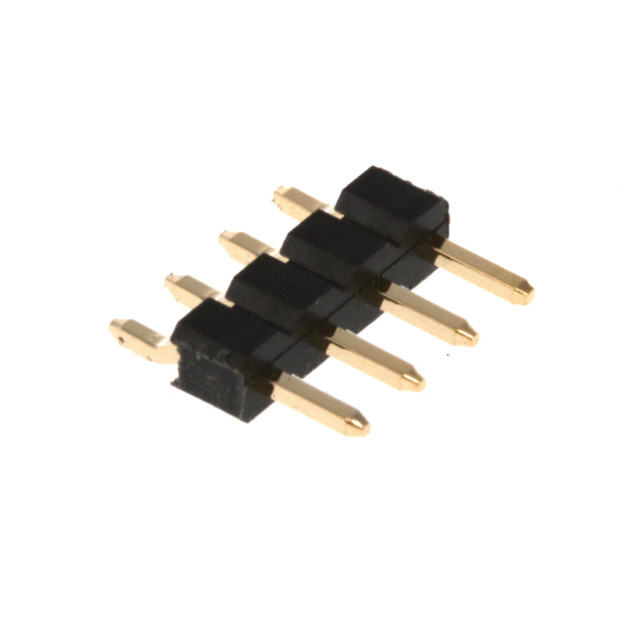

 METZ CONNECT USA Inc. | All | Black | Gold | Male Pin | Flash | Solder | Polyethylene | Push-Pull | Square | Right Angle Surface Mount | Header | 0.079 " | 2 mm | Unshrouded | 0.118 in | 3 mm | -40 C | 105 ░C | Copper Zinc | 4 | 2 mm | 0.079 in | 1 |
