LOE67F Series

Catalog

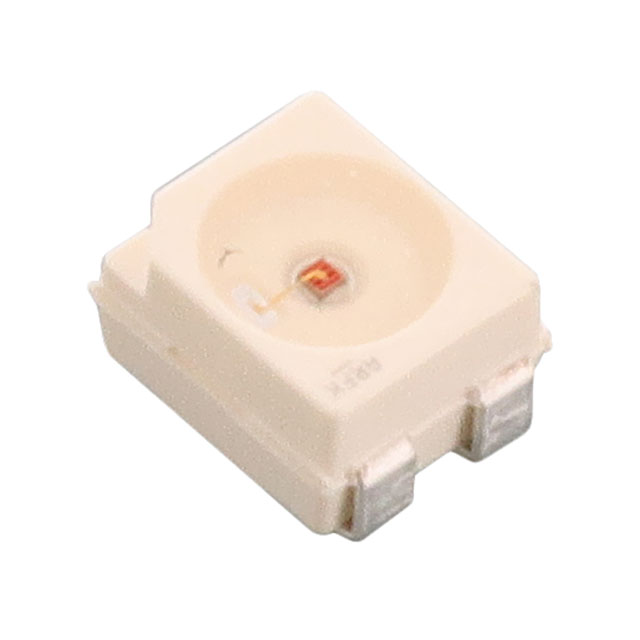

LED POWER TOPLED ORG 605NM 4PLCC

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Max [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Wavelength [Min]	Wavelength [Max]	Wavelength	Supplier Device Package	Lumens/Watt @ Current - Test	Current - Test	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Thermal Resistance of Package
ams-OSRAM USA INC. LO E67F-BADA-24-1-50-R18-Z	2.15 V	Surface Mount	70 mA	6 lm	11 lm	15 lm	25 °C	0.11 "	3.2 mm	0.126 "	2.8 mm	600 nm	609 nm	605 nm	4-PLCC	102 lm/W	50 mA	4-PLCC	2.1 mm	0.083 in	120 °	300 °C/W
