FASTON 312 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

312 FASTON TAB NPST

Part	Gender	Terminal Type	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Termination	Tab Width [y]	Tab Width [y]	Contact Material	Mounting Type	Insulation	Contact Finish	Tab Thickness	Tab Thickness	Material	Note	Terminal Size	Terminal Size	Color	Style	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [diameter]	Insulation Diameter	Features
TE Connectivity AMP Connectors 63402-2	Male	Standard	0.75 in	19.05 mm	9.83 mm	0.387 in	Solder	7.92 mm	0.312 "	Steel	Through Hole	Non-Insulated	Nickel	0.81 mm	0.032 in
TE Connectivity AMP Connectors 1-1969186-1	Female Receptacle	Quick Connect Disconnect									Free Hanging (In-Line)					Polyamide (PA66) Nylon 6/6	Contacts Not Included	0.312 in	7.92 mm	Black	Housing	7.92 mm	0.312 in	Quick Connects	1

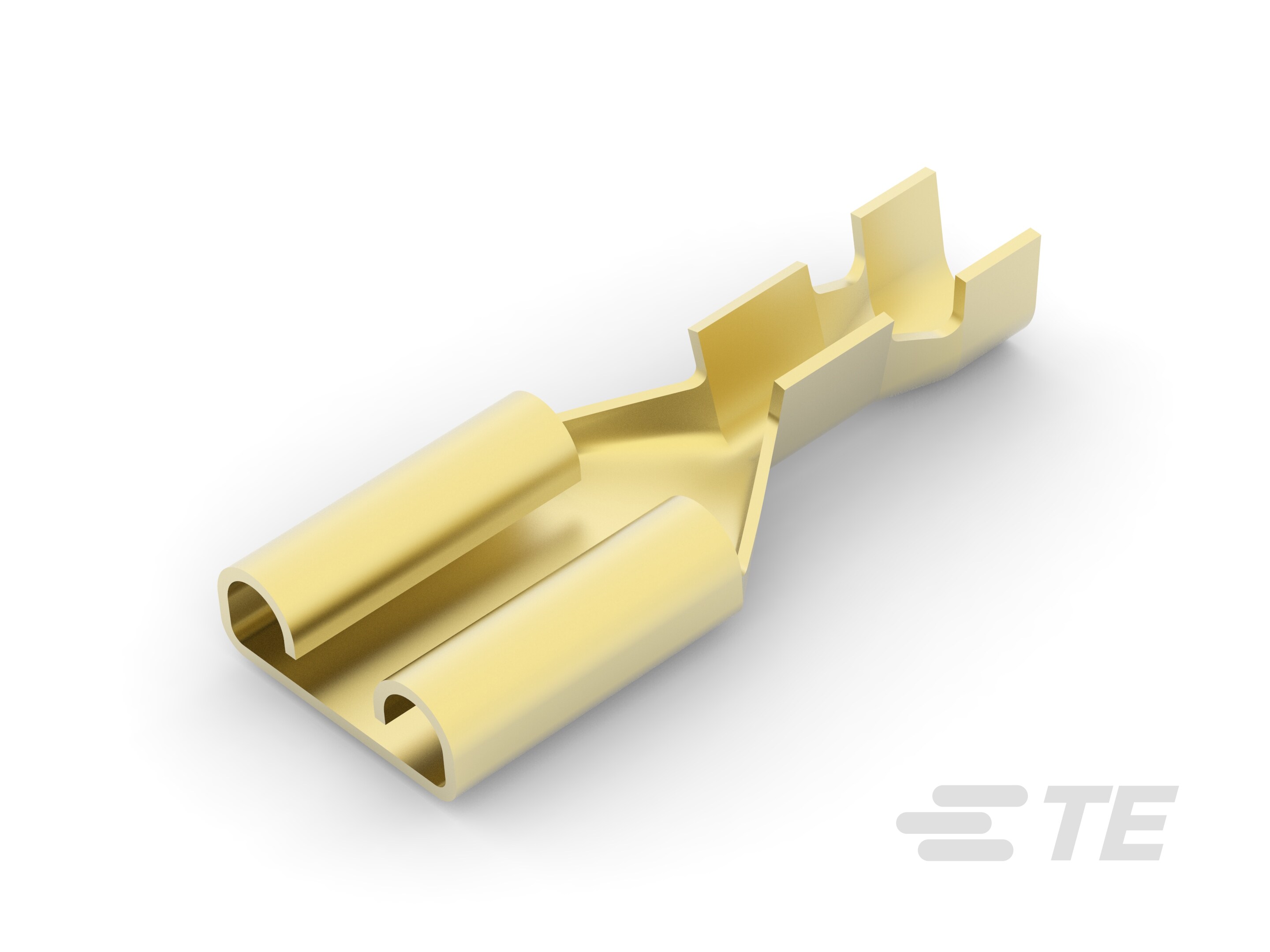

TE Connectivity AMP Connectors 62092-1	Female	Standard	0.9 "	22.86 mm	9.65 mm	0.38 in	Crimp	7.92 mm	0.312 "	Brass	Free Hanging (In-Line)	Non-Insulated		0.81 mm	0.032 in											14 AWG	18 AWG
TE Connectivity AMP Connectors 160862-8	Female	Angled - 90° Flag			8.6 mm	0.339 in	Crimp	7.92 mm	0.312 "	Phosphor Bronze	Free Hanging (In-Line) Right Angle	Non-Insulated	Tin	0.81 mm	0.032 in											13 AWG	17 AWG

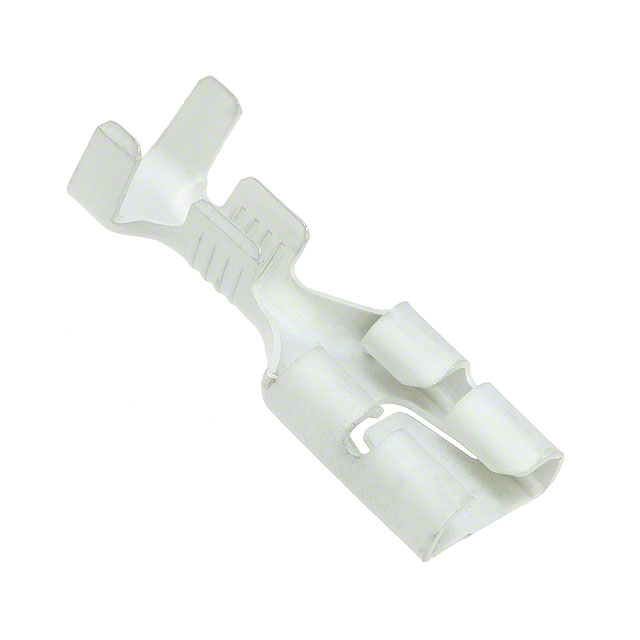

TE Connectivity AMP Connectors 63677-1	Female	Standard	0.9 "	22.86 mm	9.65 mm	0.38 in	Crimp	7.92 mm	0.312 "	Brass	Free Hanging (In-Line)	Non-Insulated	Tin	0.81 mm	0.032 in											12 AWG	16 AWG	0.16 in	4.06 mm
TE Connectivity AMP Connectors 1742803-1	Male	Standard	0.689 in	17.5 mm	12.93 mm	0.509 in	Solder	7.92 mm	0.312 "	Brass	Through Hole	Non-Insulated	Tin	0.76 mm	0.03 "
TE Connectivity AMP Connectors 63402-3	Male	Standard	0.75 in	19.05 mm	9.83 mm	0.387 in	Solder	7.92 mm	0.312 "	Brass	Through Hole	Non-Insulated		0.81 mm	0.032 in

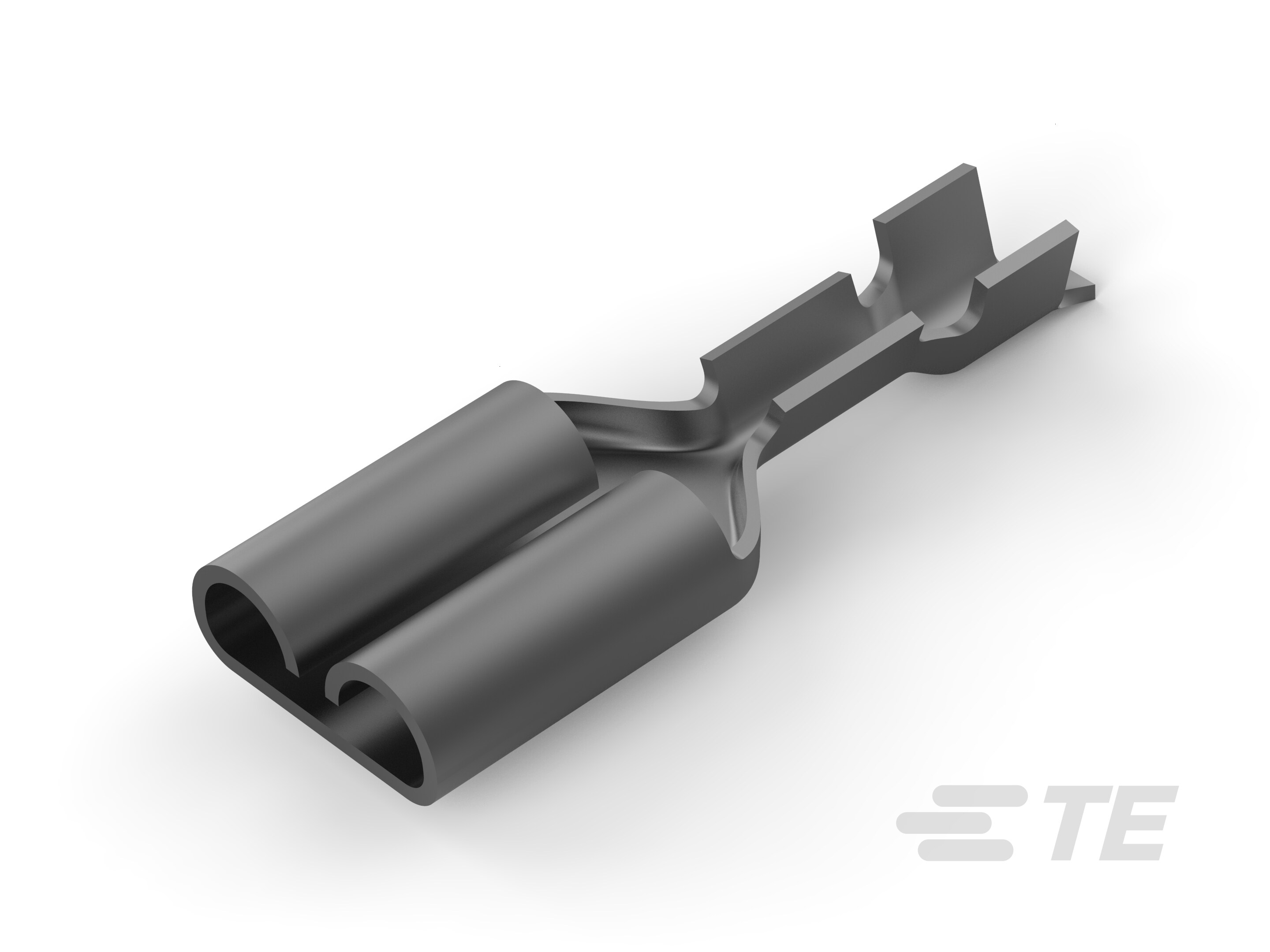

TE Connectivity AMP Connectors 1742754-1	Female	Standard					Crimp				Free Hanging (In-Line)	Non-Insulated
TE Connectivity AMP Connectors 61399-1	Female	Standard	0.9 "	22.86 mm	9.65 mm	0.38 in	Crimp	7.92 mm	0.312 "	Brass	Free Hanging (In-Line)	Non-Insulated	Tin	0.81 mm	0.032 in											12 AWG	16 AWG
TE Connectivity AMP Connectors 63300-1	Male	Standard					Crimp	7.92 mm	0.312 "	Steel	Free Hanging (In-Line)	Non-Insulated	Nickel	0.81 mm	0.032 in											15 AWG	22 AWG			High Temperature
