896 Series
Manufacturer: EDAC Inc.
Beta
⌘K
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTORS
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Pitch | Pitch | Gender | Contact Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Contact Finish | Contact Material | Read Out | Number of Positions/Bay/Row | Color | Termination | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 66 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Through Hole | Gold | Copper Alloy | Dual | 33 | Black | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | ||||||

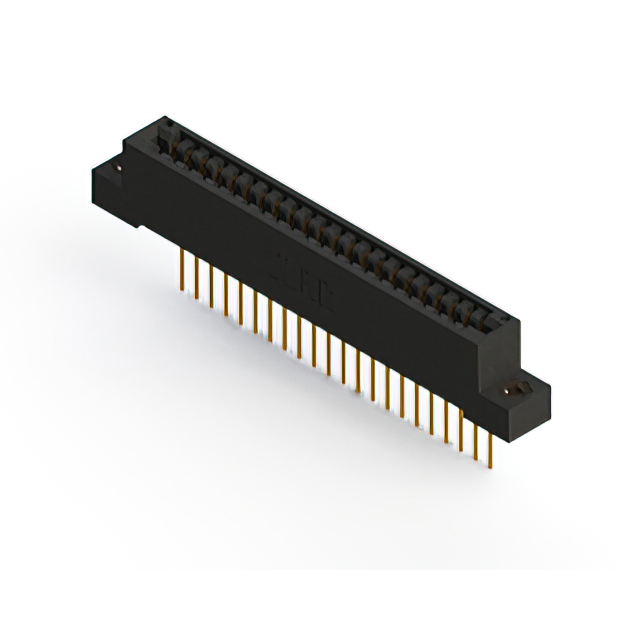

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 22 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Through Hole | Gold | Copper Alloy | Single | 22 | Black | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | ||||||
 EDAC Inc. | 80 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Right Angle Through Hole | Gold | Copper Alloy | Dual | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 40 | 3.25 mm | 0.128 " | ||||||

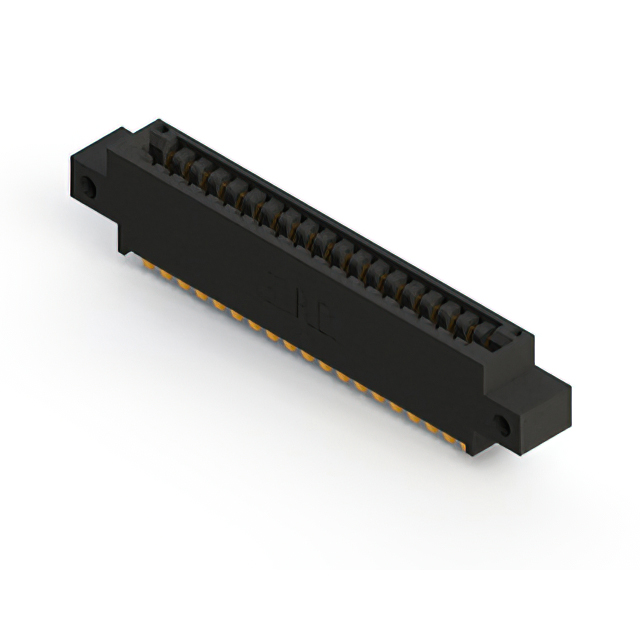

 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 38 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Board Edge Straddle Mount | Gold | Copper Alloy | Dual | 19 | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender | |||

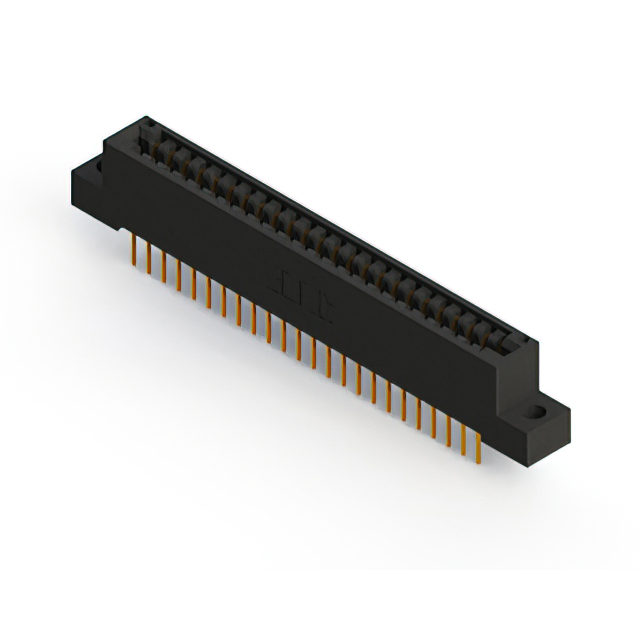

 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 48 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Through Hole | Gold | Copper Alloy | Dual | 24 | Black | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 15 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Through Hole | Gold | Copper Alloy | Single | 15 | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Side Mount Opening Unthreaded | 1 | 1 | 3.25 mm | 0.128 " | ||||
 EDAC Inc. | 20 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Through Hole | Gold | Copper Alloy | Single | 20 Bay/Row | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Floating Bobbin Flush Mount | 1 | 2.95 mm | 0.116 " | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 72 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Through Hole | Gold | Copper Alloy | Dual | 36 | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | 10 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Right Angle Through Hole | Gold | Copper Alloy | Single | 10 | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Floating Bobbin Top Mount Opening | 1 | 2.95 mm | 0.116 " | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 88 | 3.18 mm | 0.125 in | Female | Cantilever | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Through Hole | Gold | Copper Alloy | Dual | 44 | Black | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening |
