DH301 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPST-NO/NC 2A 125V
| Part | Electrical Life | Panel Cutout Dimensions [diameter] | Termination Style | Circuit | Illumination Type, Color | Color - Actuator/Cap | Voltage Rating - DC | Current Rating (Amps) | Actuator Marking | Actuator Type | Switch Function | Ingress Protection | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Features | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Green LED | Black | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | ||
 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | LED Red | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | |
 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Green LED | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | 24 V |

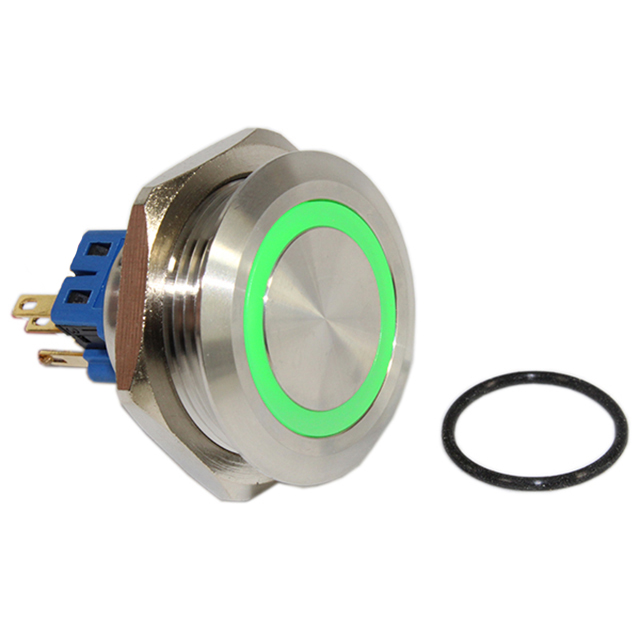

 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | DPST-NO/NC SPST-NC SPST-NO | Green LED | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | |

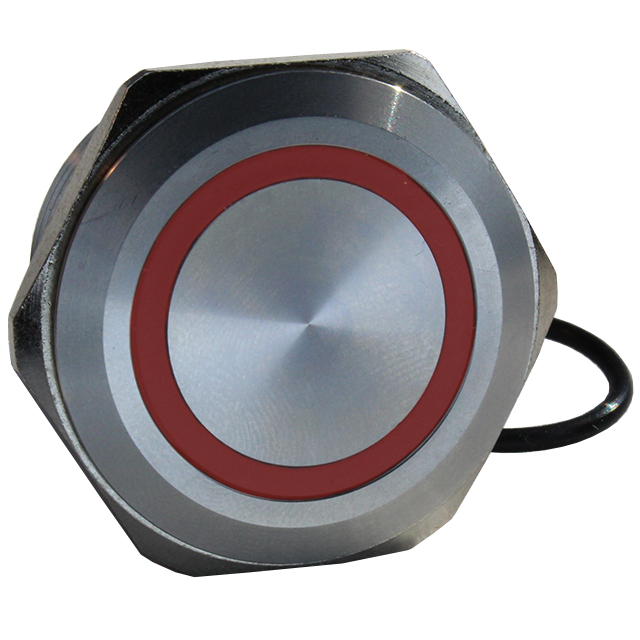

 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | DPST-NO/NC SPST-NC SPST-NO | LED Red | Silver | 24 V | 2 A 10 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | 24 V |
 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Blue LED | Black | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | ||

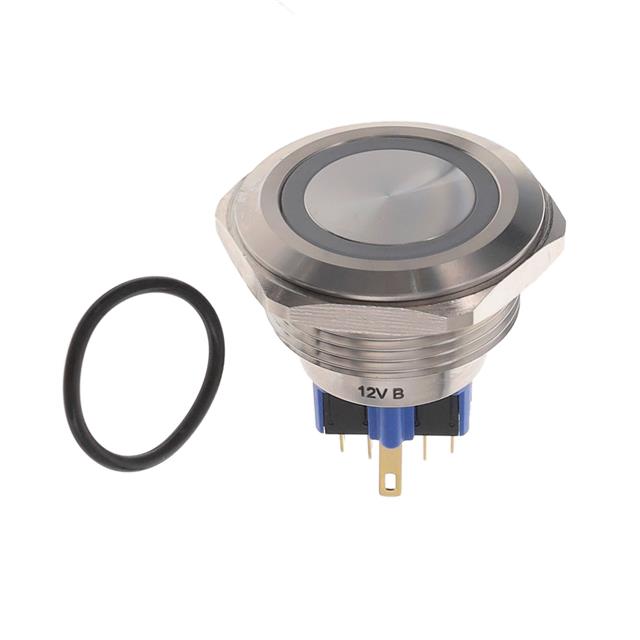

 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | DPST-NO/NC SPST-NC SPST-NO | Blue LED | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | 12 VDC |

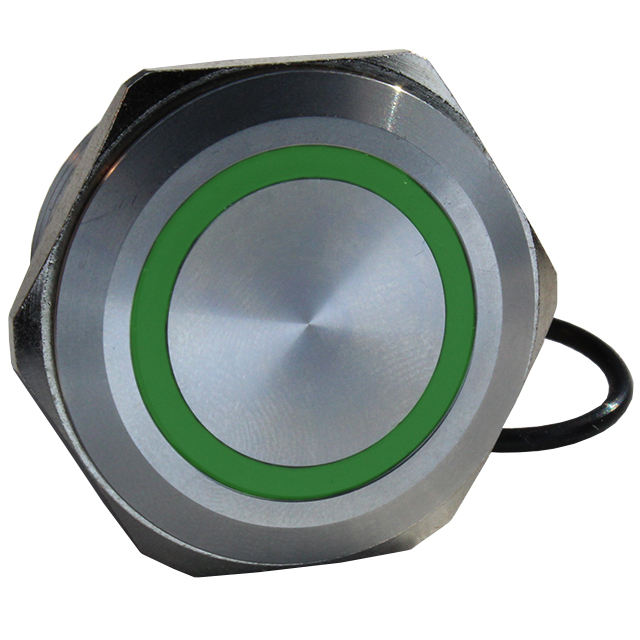

 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Green LED | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel | 12 VDC |

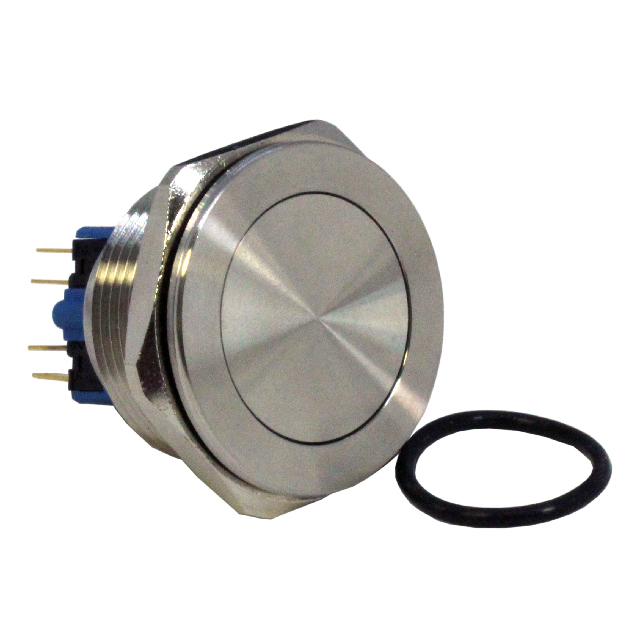

 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-Mom On-Mom | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal | -25 °C | 70 °C | 125 V | Stainless Steel | ||
 CIT Relay and Switch | 50000 Cycles | 30 mm | Solder Quick Connect - 0.110" (2.8mm) | SPST-NC SPST-NO | Blue LED | Silver | 24 V | 2 A | No Marking | Button Flush Round | Off-On On-Off | IP67 - Dust Tight Waterproof | Panel Mount Front | Anti-Vandal Illuminated | -25 °C | 70 °C | 125 V | Stainless Steel |
