200UDP1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 0.4VA 20V
| Part | Electrical Life (Cycles) | Mounting Type | Voltage Rating - AC | Switch Function | Actuator Type | Termination Style | Voltage Rating - DC | Illumination | Operating Temperature (Max) | Operating Temperature (Min) | Circuit | Actuator Length | Bushing Thread | Ingress Protection Description | Ingress Protection IP Rating | Features | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

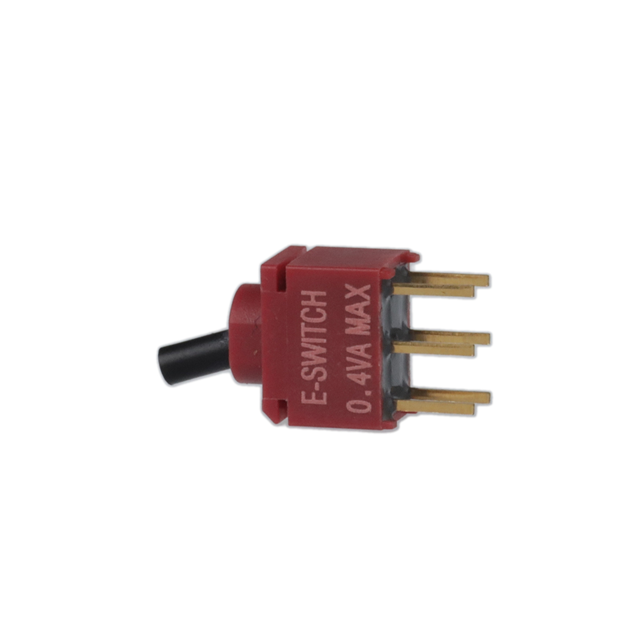

 E-Switch | 40000 | Through Hole | 20 V | On-On | Standard Round | PC Pin | 20 V | Non-Illuminated | 85 °C | -30 °C | DPDT | 3.8 mm | Unthreaded | Dust Tight Waterproof | IP67 | Epoxy Sealed Terminals | 0.4 VA |

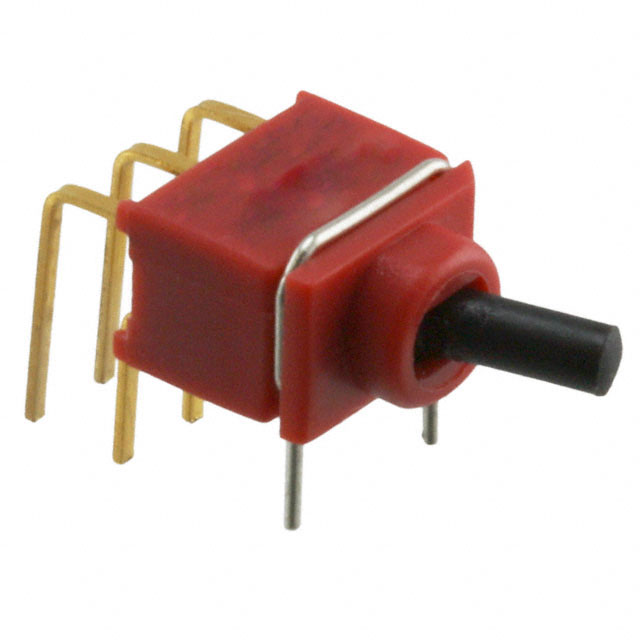

 E-Switch | 40000 | Right Angle Through Hole | 20 V | On-On | Standard Round | PC Pin | 20 V | Non-Illuminated | 85 °C | -30 °C | DPDT | 3.8 mm | Unthreaded | Dust Tight Waterproof | IP67 | Epoxy Sealed Terminals | 0.4 VA |
