D2818 Series
Manufacturer: Harwin Inc.
Beta
⌘K

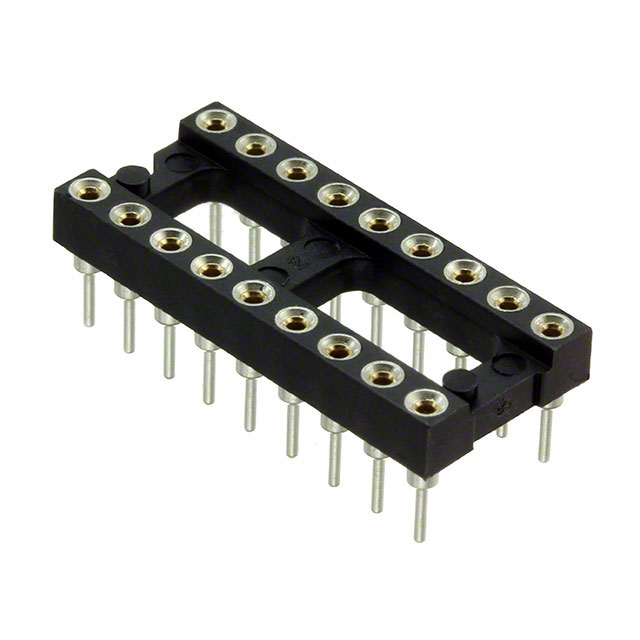

CONN IC DIP SOCKET 18POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Termination Post Length [x] | Termination Post Length [x] | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Housing Material | Features | Number of Positions or Pins (Grid) | Termination | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Material - Mating | Type | Type | Type | Contact Finish - Mating | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | 10 mOhm | 1 A | 3.2 mm | 0.126 in | 0.1 " | 2.54 mm | -55 C | 125 °C | Through Hole | 5 µm | 196.9 µin | Tin | Plastic | Open Frame | 18 | Solder | 0.1 in | 2.54 mm | Flash | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Gold | Brass |
