LD09S33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

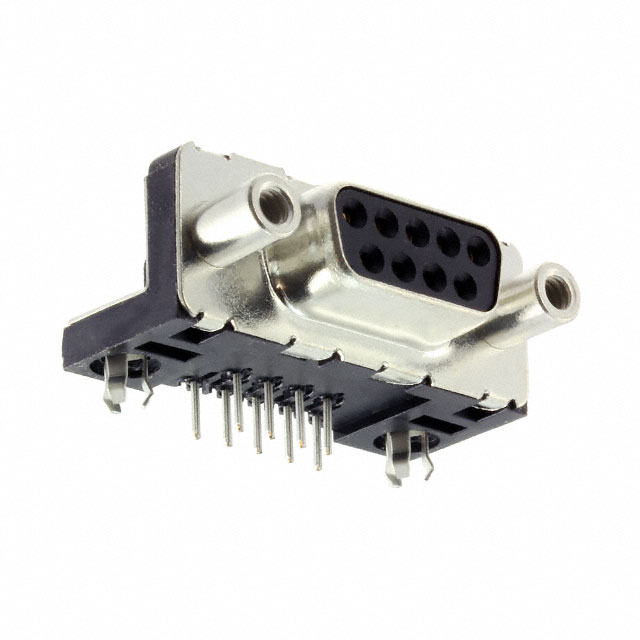

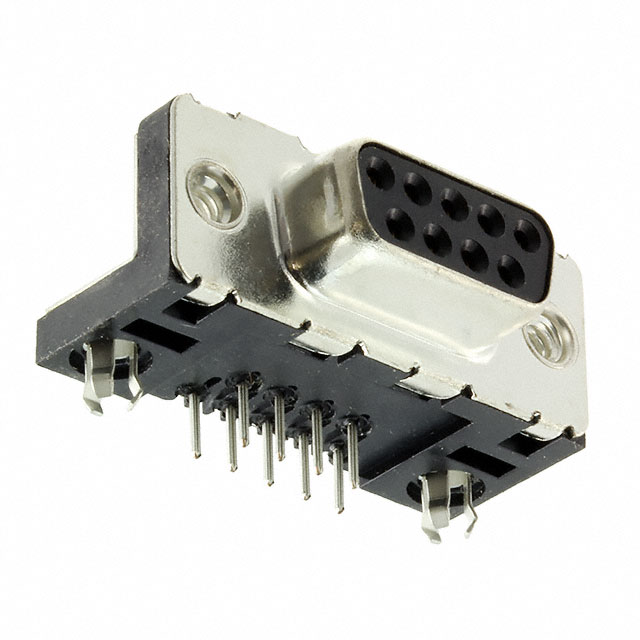

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Contact Material | Voltage Rating | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Rows [custom] | Features | Connector Style | Material Flammability Rating | Contact Finish Thickness | Mounting Type | Current Rating (Amps) | Termination | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Backset Spacing | Backset Spacing | Contact Finish | Number of Positions | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic | Black | -55 C | 105 ░C | 4-40 Mating Side Female Screwlock | 2 | Board Lock | D-Sub | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | Solder | Receptacle Female Sockets | 1 | DE E | Signal | 8.08 mm | 0.318 " | Gold | 9 | Steel Tin-Nickel Plated | |
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic | Black | -55 C | 105 ░C | Housing/Shell | 2 | Board Lock | D-Sub | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | Solder | Receptacle Female Sockets | 1 | DE E | Signal | 8.08 mm | 0.318 " | Gold | 9 | Steel Tin-Nickel Plated | 4-40 |
