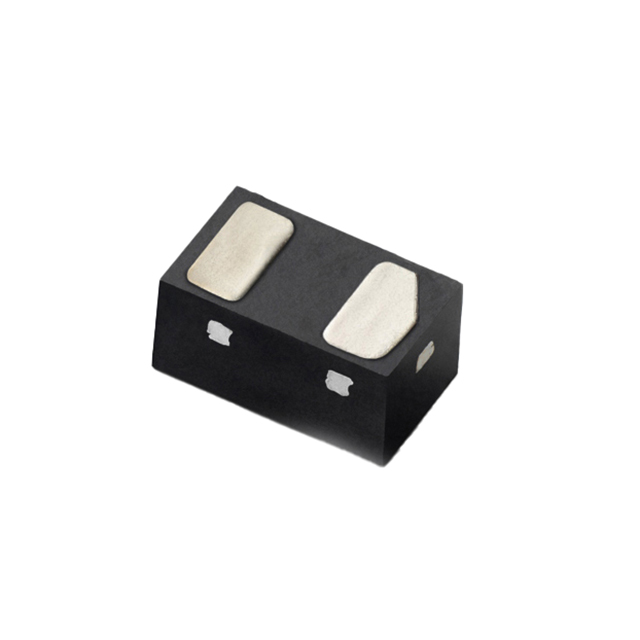

SP1250-01ETG Series

5V 50A 30kV SOD882 Uni-dir TVS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

5V 50A 30kV SOD882 Uni-dir TVS

Part	Current - Peak Pulse (10/1000µs)	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Type	Package / Case	Supplier Device Package	Voltage - Reverse Standoff (Typ)
Littelfuse/Commercial Vehicle Products SP1250-01ETG	50 A		-40 °C	125 °C	Automotive	118 pF	5.5 V	1	10 V	Surface Mount	Zener	SOD-882	SOD-882	5 V

Catalog

5V 50A 30kV SOD882 Uni-dir TVS

Key Features

• IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through airIEC 61000-4-4 EFT protection: 40 A (5/50 ns)

• Lightning, 50A (8/20μs as defined in IEC 61000-4-5 2nd edition)

• Low typical leakage current of 0.02 μA at 5 V

• Lead-free, halogen-free, and RoHS compliant

• Moisture Sensitivity Level (MSL -1)

Description

The SP1250 unidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1250 TVS can safely absorb repetitive ESD strikes of ± 30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, each TVS can safely dissipate a 50A 8/20μs surge event as defined in IEC 61000-4-5 2nd edition.
