3107Z Series
Manufacturer: Belden Inc.
Beta
⌘K

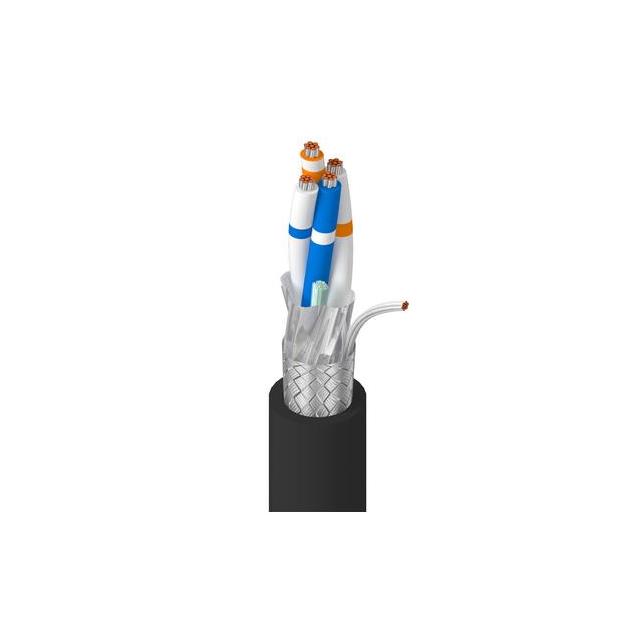

MULTI-PAIR 4COND 22AWG BLK
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Material | Usage | Wire Gauge | Features | Shield Type | Number of Conductors | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Low Smoke Zero Halogen (LSZH) | Copper Tinned | Industrial | 22 AWG | Drain Wire UV Resistant | Braid Foil | 4 | Foam High Density Polyethylene (FHDPE) | -20 ░C | 60 °C | Black | 30 AWG | 7 | 300 VDC | Multi-Pair | 11.18 mm | 0.44 " |
