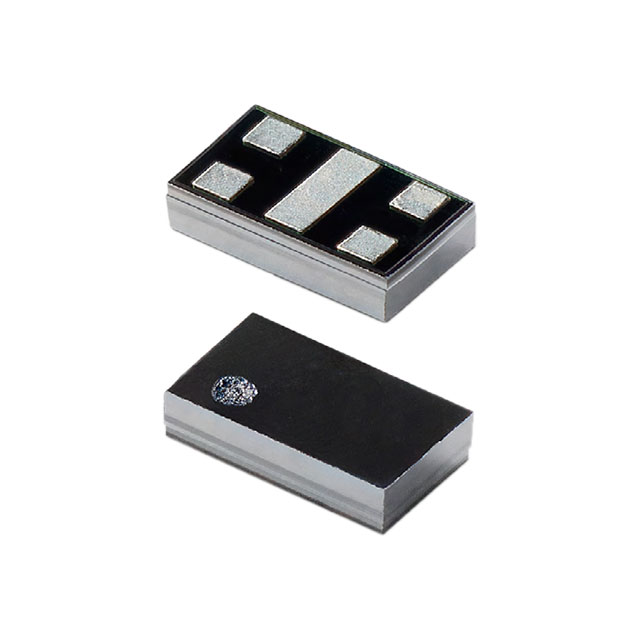

SP1015-04WTG Series

4Ch 5pF 20kV 5V TVS diode Array 0402

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4Ch 5pF 20kV 5V TVS diode Array 0402

Part	Bidirectional Channels [custom]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Applications	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp	Package / Case	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage - Reverse Standoff (Typ)
Littelfuse/Commercial Vehicle Products SP1015-04WTG	4	Zener	-40 °C	125 ¯C		General Purpose	5.5 V	5 pF	12 V	4-XFDFN Exposed Pad	Surface Mount	0.55	4-FlipChip	0.95	5 V

Catalog

4Ch 5pF 20kV 5V TVS diode Array 0402

Key Features

• RoHS compliant, Halogen-free and Lead free

• ESD, IEC 61000-4-2, ±20kV contact, ±30kV air

• EFT, IEC 61000-4-4,40A (5/50ns)

• Lightning protection, IEC 61000-4-5 2nd Edition, 2.0A (tP=8/20μs)

• High density TVS Array available today

• 4 channels of protection in a 0.95x0.55mm footprint

• Touch screen and I2C interfaces

Description

The miniature 4 channel bidirectional TVS array provides protection for data lines that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes well above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation. The bidirectional configuration provides symmetrical ESD protection for data lines when AC signals are present.
