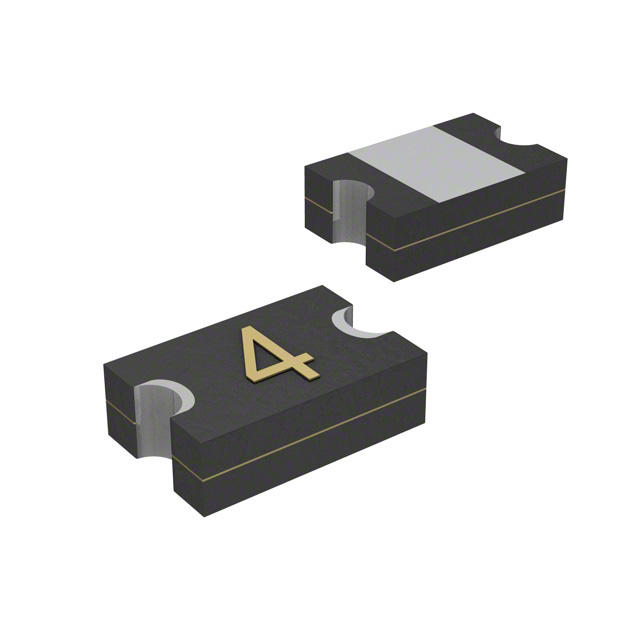

MF-PSMF Series

Catalog

PTC RESET FUSE 6V 1.1A 0805

Part	Approval Agency	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Max [Max]	Time to Trip	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Mounting Type	Package / Case	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Grade	Qualification
Bourns Inc. MF-PSMF110X-2	cURus TUV	1.25 mm	0.049 in	6 V	0.3 s	Polymeric	85 °C	-40 C	0.085 in	0.053 "	2.15 mm	1.35 mm	1.1 A	40 A	Surface Mount	0805 Concave	2012	60 mOhms	210 mOhms	2.2 A
Bourns Inc. MF-PSMF010/24X-2	cUL cURus TUV	0.85 mm	0.033 in	24 V	1.5 s	Polymeric	85 °C	-40 C	0.085 in	0.053 "	2.15 mm	1.35 mm	100 mA	80 A	Surface Mount	0805 Concave	2012	1 Ohms	7.5 Ohms	300 mA	Automotive	AEC-Q200
Bourns Inc. MF-PSMF035X-2	cURus TUV	0.85 mm	0.033 in	6 V	100 ms	Polymeric	85 °C	-40 C	0.085 in	0.053 "	2.15 mm	1.35 mm	350 mA	40 A	Surface Mount	0805 Concave	2012	250 mOhms	1.2 Ohms	750 mA

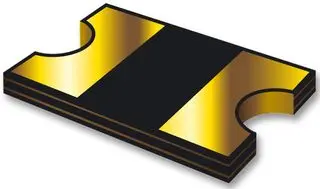

Bourns Inc. MF-PSMF020X-2	cURus TUV	0.85 mm	0.033 in	9 V	20 ms	Polymeric	85 °C	-40 C	0.085 in	0.053 "	2.15 mm	1.35 mm	200 mA	40 A	Surface Mount	0805 Concave	2012	650 mOhms	3.5 Ohms	500 mA

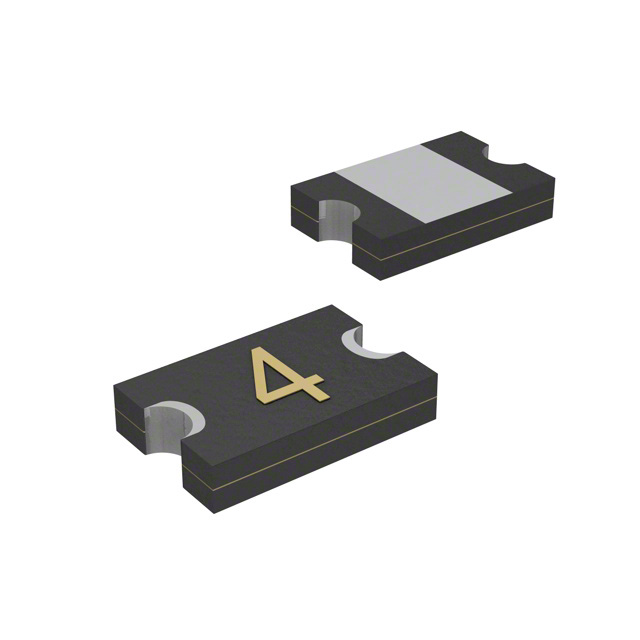

Bourns Inc. MF-PSMF010X-2	cURus TUV	0.85 mm	0.033 in	15 V	1.5 s	Polymeric	85 °C	-40 C	0.085 in	0.053 "	2.15 mm	1.35 mm	100 mA	40 A	Surface Mount	0805 Concave	2012	1 Ohms	7.5 Ohms	300 mA
