2801-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

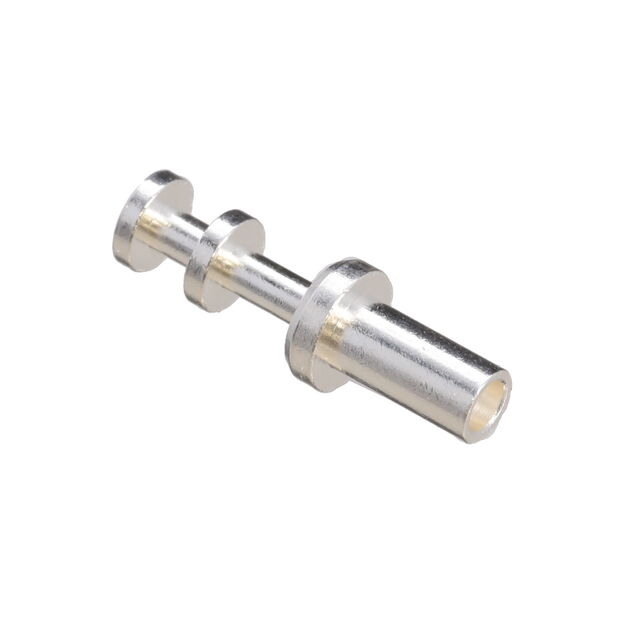

TERM TURRET SINGLE L=9.14MM
| Part | Staking Side OD [diameter] | Staking Side OD [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Staking Side ID | Staking Side ID | Length - Above Board | Length - Above Board [x] | Number of Turrets | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Board Thickness | Board Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Insulation | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 3.68 mm | 0.145 " | 7.62 µm | 300 µin | 15.09 mm | 0.594 in | Tin-Lead | 0.078 in | 1.98 mm | 9.14 mm | 0.36 in | Single | Swage | 0.187 in | 4.75 mm | Through Hole | 4.78 mm | 0.188 in | 5.94 mm | 0.234 " | Single End | Non-Insulated | Brass Alloy | 0.116 in | 2.95 mm |
 Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 3.68 mm | 0.145 " | 7.62 µm | 300 µin | 15.09 mm | 0.594 in | Silver | 0.078 in | 1.98 mm | 9.14 mm | 0.36 in | Single | Swage | 0.187 in | 4.75 mm | Through Hole | 4.78 mm | 0.188 in | 5.94 mm | 0.234 " | Single End | Non-Insulated | Brass Alloy | 0.116 in | 2.95 mm |
Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 3.68 mm | 0.145 " | 5.08 Ám | 200 Áin | 15.09 mm | 0.594 in | Tin-Lead | 0.078 in | 1.98 mm | 9.14 mm | 0.36 in | Single | Swage | 0.187 in | 4.75 mm | Through Hole | 4.78 mm | 0.188 in | 5.94 mm | 0.234 " | Single End | Non-Insulated | Brass Alloy | 0.116 in | 2.95 mm |
Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 3.68 mm | 0.145 " | 5.08 Ám | 200 Áin | 15.09 mm | 0.594 in | Tin | 0.078 in | 1.98 mm | 9.14 mm | 0.36 in | Single | Swage | 0.187 in | 4.75 mm | Through Hole | 4.78 mm | 0.188 in | 5.94 mm | 0.234 " | Single End | Non-Insulated | Brass Alloy | 0.116 in | 2.95 mm |
