DWM-19 Series

Catalog

CONN HDR 38POS 0.05 STACK T/H

Part	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Mounting Type	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Termination	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]
Samtec Inc. DWM-19-52-G-D-250	38	0.25 Ám	10 Áin	Black	Through Hole	10.8 mm	0.425 in	0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.25 in	6.35 mm	1.397 mm	0.055 in	2
Samtec Inc. DWM-19-61-S-D-810	38	0.76 µm	30 µin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.81 in	20.574 mm	3.048 mm	0.12 in	2	1.05 in	26.67 mm
Samtec Inc. DWM-19-61-G-D-250	38	0.25 Ám	10 Áin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.25 in	6.35 mm	17.272 mm	0.68 in	2	1.05 in	26.67 mm

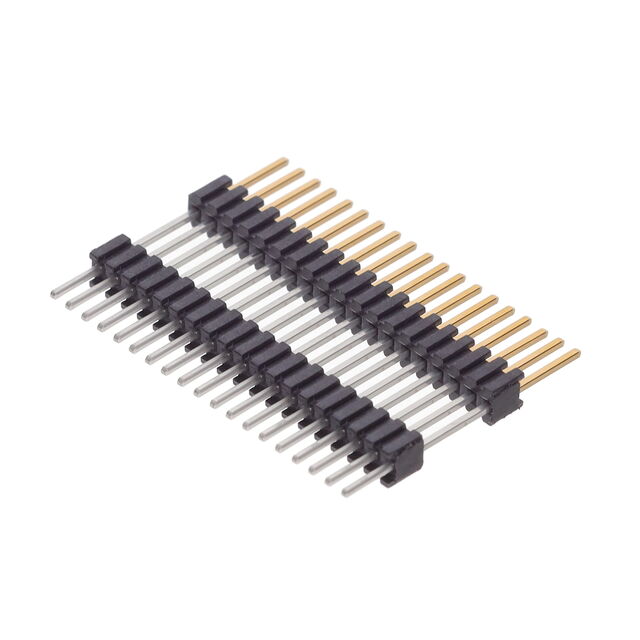

Samtec Inc. DWM-19-58-L-S-405	19	0.25 Ám	10 Áin	Black	Through Hole	17.907 mm	0.705 in			0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.405 in	10.287 mm	4.572 mm	0.18 in	1
Samtec Inc. DWM-19-59-L-D-485	38	0.25 Ám	10 Áin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.485 in	12.319 mm	3.81 mm	0.15 in	2	0.755 in	19.177 mm
