BG220V Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 9-12MM M20 BRASS

Part	Type	Color	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Ingress Protection	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]
Pflitsch BG220VATRICP	Cable Gland	Silver	Sealing Ring	12 mm	0.472 in	Brass Nickel Plated	IP68 IP69	M20x1.5	0.354 in	9 mm	0.354 in	9 mm	85 °C	-40 C	20 mm	0.787 in

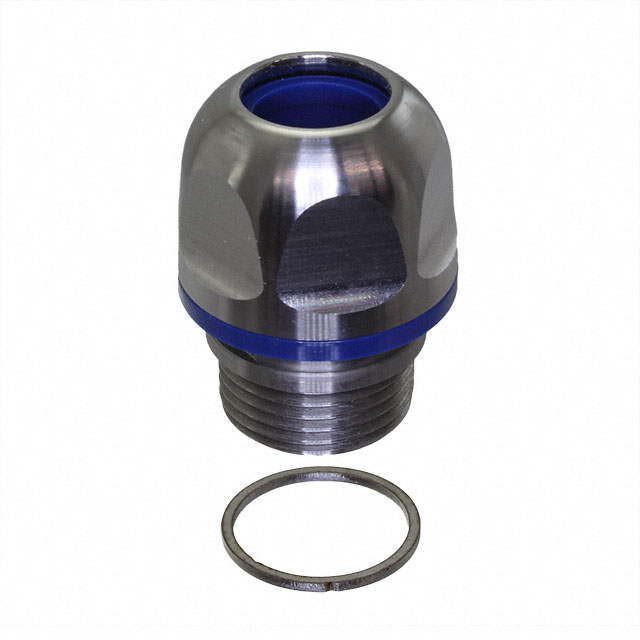

Pflitsch BG220VACP	Cable Gland	Silver	Sealing Ring			Stainless Steel	IP66 IP68 IP69	M20x1.5			0.354 in	9 mm	85 °C	-40 C	20 mm	0.787 in	8.89 mm	0.35 "	11.94 mm	0.47 in
