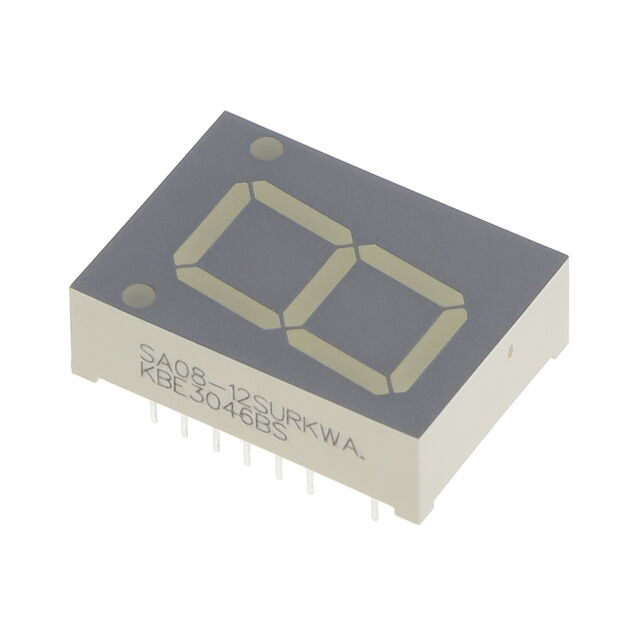

SA08-12 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7-SEG 0.8" SGL RED 16DIP
| Part | Wavelength - Peak | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Color | Common Pin | Package / Case | Package / Case | Package / Case | Display Type | Current - Test | Number of Characters | Package / Case [x] | Package / Case [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 645 nm | 61 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 75 mw | 1.95 V | Red | Common Anode | 15.24 mm | 16-DIP | 0.6 in | 7-Segment | 20 mA | 1 | |||
 Kingbright | 565 nm | 13 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 62.5 mW | 2.2 V | Green | Common Anode | 18-DIP | 7-Segment | 20 mA | 1 | 15.24 mm | 0.6 in | |||
Kingbright | 590 nm | 7.9 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 75 mw | 2.1 V | Yellow | Common Anode | 18-DIP | 7-Segment | 20 mA | 1 | 15.24 mm | 0.6 in | |||
 Kingbright | 655 nm 660 nm | 36 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 75 mw | 1.8 V 1.85 V | Red | Common Anode | 16-DIP 18-DIP | 15.24 mm | 7-Segment | 10 mA 20 mA | 1 | 15.24 mm | 0.6 in | 0.6 in 13 Leads | |
Kingbright | 25 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 75 mw | 2.1 V | Green | Common Anode | 15.24 mm | 16-DIP | 0.6 in | 7-Segment | 20 mA | 1 | ||||
Kingbright | 627 nm | 8 mcd | 0.8 in | 20.32 mm | 27.7 mm | 0.331 in | 1.091 " | 0.787 in | 20 mm | 8.4 mm | 75 mw | 2 V | Red | Common Anode | 18-DIP | 7-Segment | 20 mA | 1 | 15.24 mm | 0.6 in |
