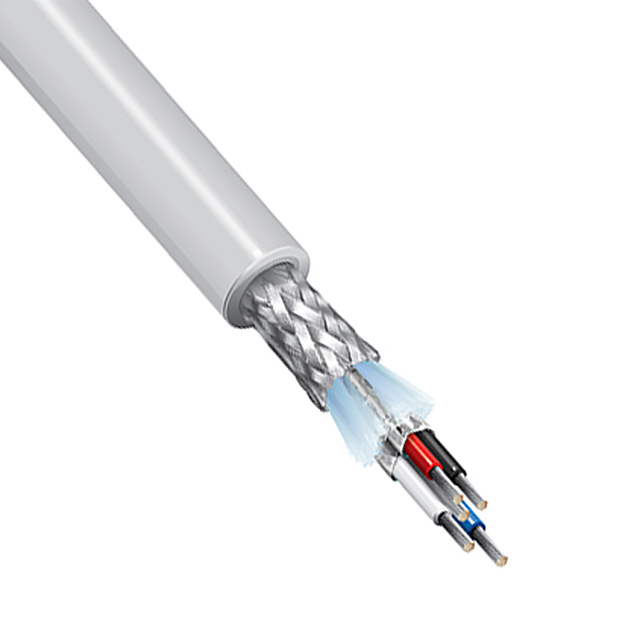

3082A Series

Catalog

MULTI-PAIR 4COND 15/18AWG

Part	Shield Coverage	Shield Material	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Material	Shield Type	Ratings	Wire Gauge	Conductor Insulation	Features	Conductor Material	Number of Conductors	Length [x]	Length [x]
Belden Inc. 3082A T5U500	65 % 100 %	Aluminum Copper Tinned	152.4 m	500 ft	0.06 in	1.524 mm	0.48 in	12.19 mm	Gray	19	30 AWG	19	27 AWG	Multi-Pair	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 20201	15 AWG 18 AWG	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Drain Wire Flame Retardant Oil Resistant UV Resistant	Copper Tinned	4
Belden Inc. 3082A T5U3000	65 % 100 %	Aluminum Copper Tinned	914.4 m	3000 '	0.06 in	1.524 mm	0.48 in	12.19 mm	Gray	19	30 AWG	19	27 AWG	Multi-Pair	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 20201	15 AWG 18 AWG	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Drain Wire Flame Retardant Oil Resistant UV Resistant	Copper Tinned	4
Belden Inc. 3082A T5U2000	65 % 100 %	Aluminum Copper Tinned			0.06 in	1.524 mm	0.48 in	12.19 mm	Gray	19	30 AWG	19	27 AWG	Multi-Pair	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 20201	15 AWG 18 AWG	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Drain Wire Flame Retardant Oil Resistant UV Resistant	Copper Tinned	4	2000 ft	609.6 m
Belden Inc. 3082A T5U1000	65 % 100 %	Aluminum Copper Tinned	304.8 m	1000 ft	0.06 in	1.524 mm	0.48 in	12.19 mm	Gray	19	30 AWG	19	27 AWG	Multi-Pair	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 20201	15 AWG 18 AWG	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Drain Wire Flame Retardant Oil Resistant UV Resistant	Copper Tinned	4
