RLM-1632 Series

Catalog

RES 0.01 OHM 1% 1/2W 1206

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations [custom]	Temperature Coefficient	Resistance	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Height - Seated (Max)

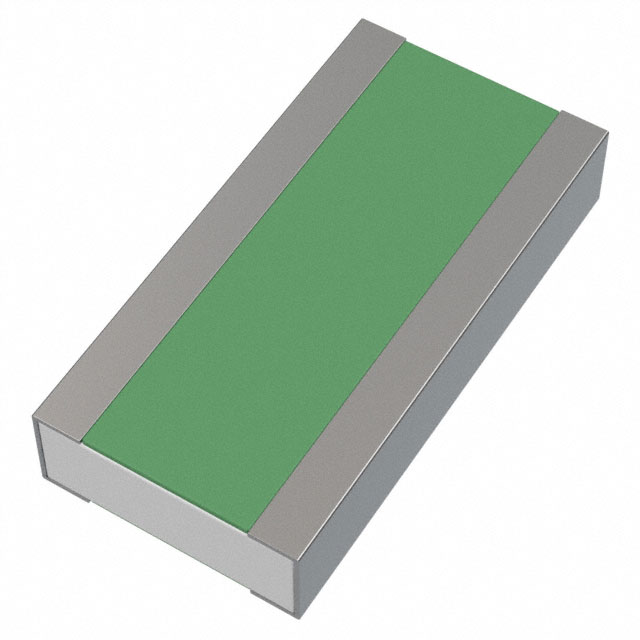

Delta Electronics/Cyntec RLM-1632W-4F-R010-FNH	170 °C	-55 C	0.5 W	0.5 W	3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	10 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-6F-R010-FNH	170 °C	-55 C	1 W		3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	10 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-6F-R003-FNH	170 °C	-55 C	1 W		3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	3 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-4F-R004-FNH	170 °C	-55 C	0.5 W	0.5 W	3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	4 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-4F-R005-FNH	170 °C	-55 C	0.5 W	0.5 W	3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	5 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-6F-R001-FNH	170 °C	-55 C	1 W		3.2 mm	0.063 "	1.6 mm	0.126 in	2	200 ppm/°C	1 mOhms	0612 Wide 1206 (3216 Metric)	1 %			0612	0.035 in	0.9 mm
Delta Electronics/Cyntec RLM-1632W-6F-R005-FNH	170 °C	-55 C	1 W		3.2 mm	0.063 "	1.6 mm	0.126 in	2	100 ppm/°C	5 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612
Delta Electronics/Cyntec RLM-1632W-4F-R002-FNH	170 °C	-55 C	0.5 W	0.5 W	3.2 mm	0.063 "	1.6 mm	0.126 in	2	150 ppm/°C	2 mOhms	0612 Wide 1206 (3216 Metric)	1 %	0.7 mm	0.028 "	0612

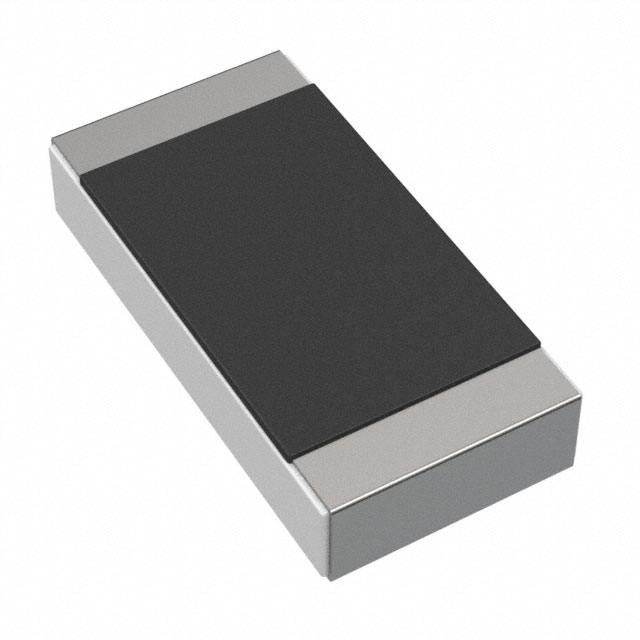

Delta Electronics/Cyntec RLM-1632-6F-R001-FNH	170 °C	-55 C	1 W		1.6 mm	0.126 "	3.2 mm	0.063 "	2	100 ppm/°C	1 mOhms	1206 (3216 Metric)	1 %			1206	0.031 in		Current Sense	0.8 mm
Delta Electronics/Cyntec RLM-1632-6F-R002-FNH	170 °C	-55 C	1 W		1.6 mm	0.126 "	3.2 mm	0.063 "	2	100 ppm/°C	2 mOhms	1206 (3216 Metric)	1 %			1206	0.031 in		Current Sense	0.8 mm
