09628060 Series

Manufacturer: HARTING

Catalog

CONN HOOD SIDE ENTRY SZ6B PG21

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size	Lock Location	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Connector Type	Thread Size	Ingress Protection	Housing Material	Style	Size / Dimension [z]	Size / Dimension [y]

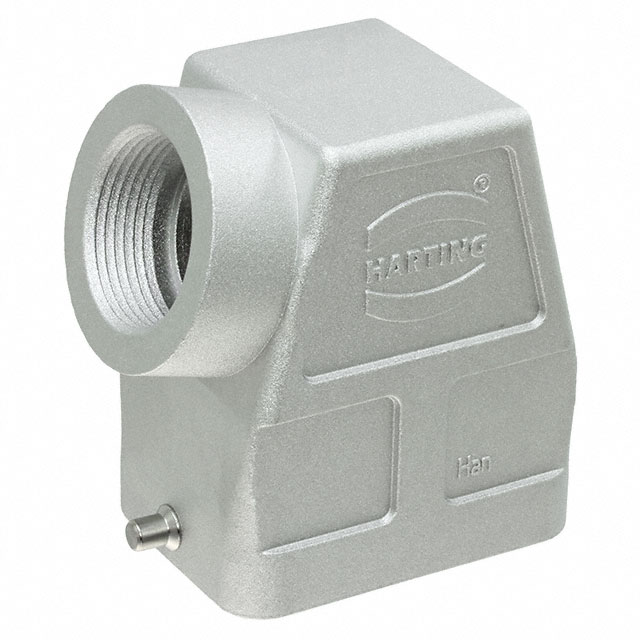

HARTING 09628060542	125 °C	-40 C	6B	Locking Clip (1) on Base Bottom	2.835 "	72 mm	60 mm	1.693 "	43 mm	2.362 in	Hood	PG21	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Side Entry
HARTING 09628060543			6B	Locking Clip (1) on Base Bottom	2.835 "	72 mm	60 mm	1.693 "	43 mm	2.362 in	Hood	PG29			Side Entry

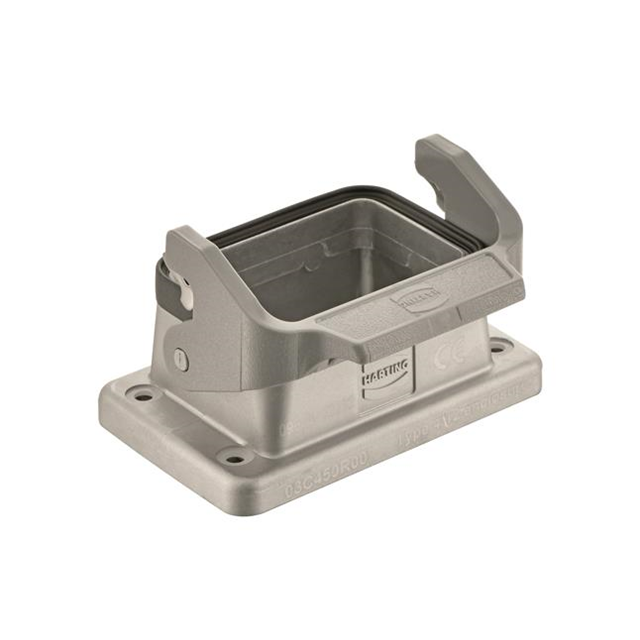

HARTING 09628060392	125 °C	-40 C	6B	Locking Clip (1) on Base Bottom	1.406 in		85 mm	2.126 in		3.346 in	Base - Panel Mount		IP66 - Dust Tight Water Resistant	Aluminum Die Cast	Bottom Entry	35.7 mm	54 mm

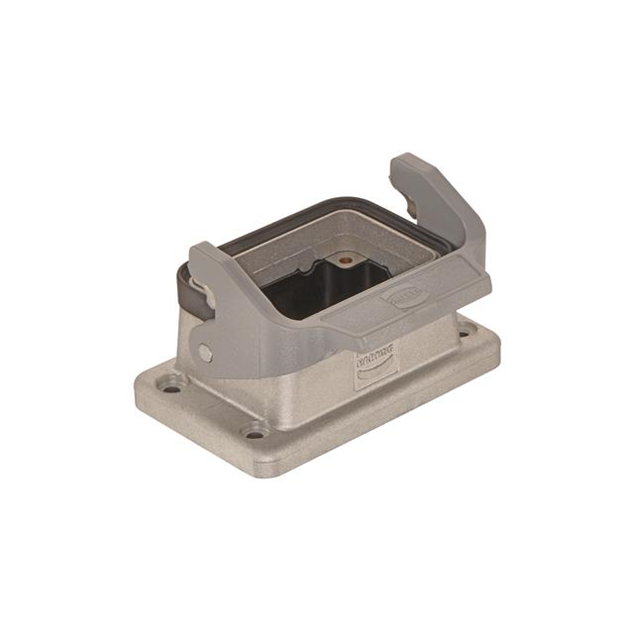

HARTING 09628060315	125 °C	-40 C	6B	Locking Clip (1) on Base Bottom	1.406 in		85 mm	2.126 in		3.346 in	Base - Panel Mount		IP66 - Dust Tight Water Resistant	Aluminum Die Cast	Bottom Entry	35.7 mm	54 mm
