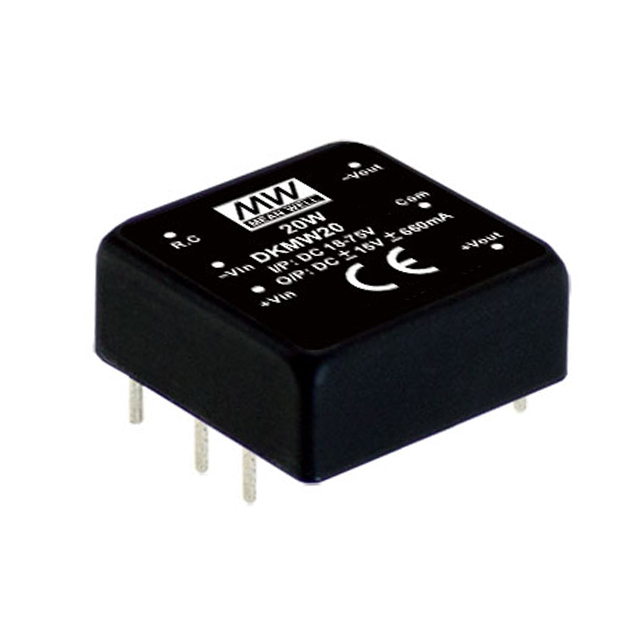

DKMW20 Series

Catalog

DC DC CONVERTER +/-15V 20W

Part	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Power (Watts)	Package / Case	Type	Number of Outputs	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. DKMW20F-15	Through Hole	9 V	36 V	-15 V	20 W	6-DIP Module	Isolated Module	2	15 V	87 %	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	660 mA	-40 °C	85 °C	1.5 kV
MEAN WELL USA Inc. DKMW20G-12	Through Hole	18 V	75 V	-12 V	20 W	6-DIP Module	Isolated Module	2	12 V	87 %	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO		-40 °C	85 °C	1.5 kV	830 mA	830 mA
MEAN WELL USA Inc. DKMW20G-15	Through Hole	18 V	75 V	-15 V	20 W	6-DIP Module	Isolated Module	2	15 V	88 %	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	660 mA	-40 °C	85 °C	1.5 kV
MEAN WELL USA Inc. DKMW20F-12	Through Hole	9 V	36 V	-12 V	20 W	6-DIP Module	Isolated Module	2	12 V	87 %	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO		-40 °C	85 °C	1.5 kV	830 mA	830 mA
