NXH80T120L3Q0 Series

Power Integrated Module (PIM), T-Type NPC 1200 V, 80 A IGBT, 600 V, 50 A IGBT

Catalog

Power Integrated Module (PIM), T-Type NPC 1200 V, 80 A IGBT, 600 V, 50 A IGBT

Part	Configuration	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	NTC Thermistor	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Input

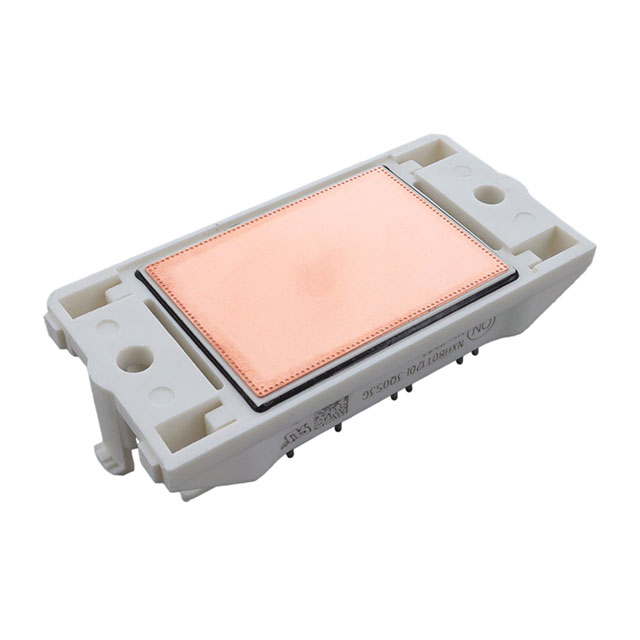

ON Semiconductor NXH80T120L3Q0S3G	Half Bridge	20-PIM/Q0PACK	32.5	55	188 W	300 µA	Module	-40 C	175 °C	Trench Field Stop	Chassis Mount	1200 V		18150 pF	75 A	2.4 V	Standard
ON Semiconductor NXH80T120L3Q0P3G	Three Level Inverter	20-PIM/Q0PACK	32.5	55	188 W	300 µA	Module	-40 C	175 °C	Trench Field Stop	Chassis Mount	1200 V		18150 pF	75 A	2.4 V	Standard

Catalog

Power Integrated Module (PIM), T-Type NPC 1200 V, 80 A IGBT, 600 V, 50 A IGBT

Key Features

• High speed 1200V and 650V IGBTs with low VCESAT

• Options with pre-applied thermal interface material (TIM) andwithout pre-applied TIM

• Options with press-fit pins and solder pins

Description

The NXH80T120L2Q0 is power integrated module containing a T-type neutral point clamped (NPC) three level inverter consisting of two 80 A/1200 V half-bridge IGBTs with 40 A/1200 V half-bridge diodes and two 50 A/600 V NPC IGBTs with two 50 A/600 V NPC diodes. The modules also contain an on−board thermistor.
