737-046 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 46POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Number of Positions/Bay/Row	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Pitch	Pitch	Contact Finish	Number of Rows [custom]	Card Type	Color	Gender	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Material	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 737-046-525-201	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-520-201	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

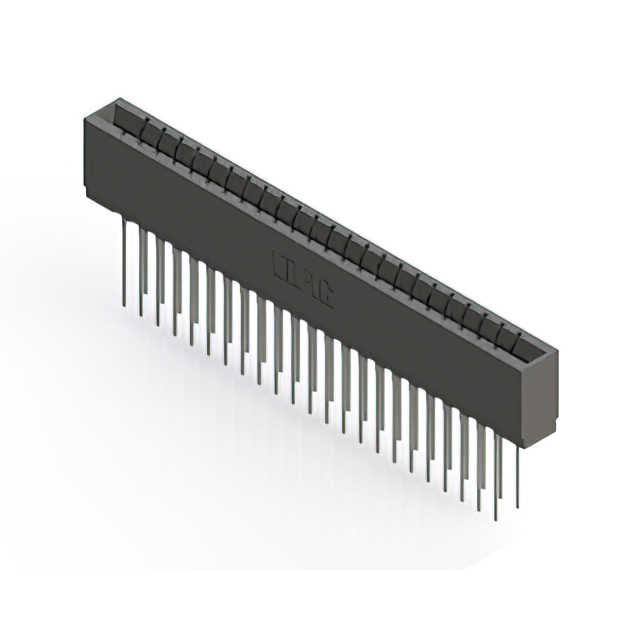

EDAC Inc. 737-046-541-201	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit Wire Wrap	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-522-206	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-560-201	Polyester Thermoplastic	2	Through Hole	23	Cantilever Make Before Break	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-522-201	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-520-206	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-540-206	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit Wire Wrap	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-046-525-206	Polyester Thermoplastic	2	Through Hole	23	Cantilever	-40 C	105 ░C	Dual	3.96 mm	0.156 in	Gold	2	Non Specified - Dual Edge	Black	Female	Press-Fit	30 Áin	0.76 Ám	46	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
