NPPN302 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 60POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Insulation Color	Number of Rows [custom]	Termination	Contact Finish - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Connector Type	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height	Features	Contact Length - Post [custom]

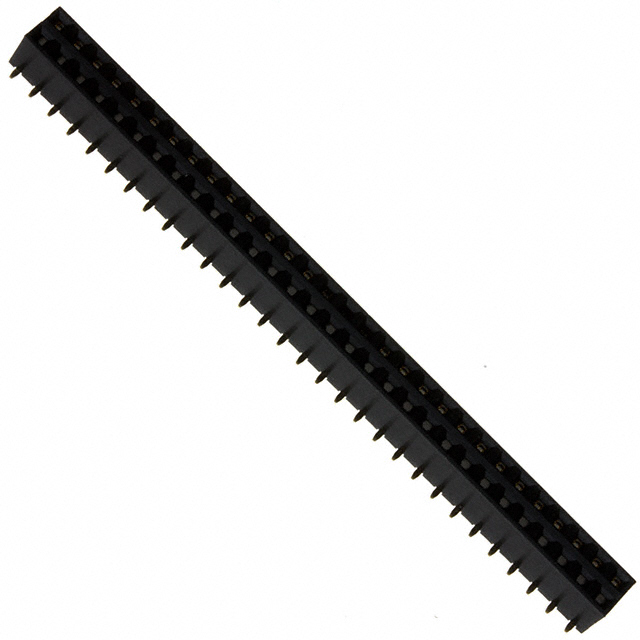

Sullins Connector Solutions NPPN302FFKS-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2 A	Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm	4.4 mm	0.173 in	Surface Mount	60	Header	Female Socket	All	Gold

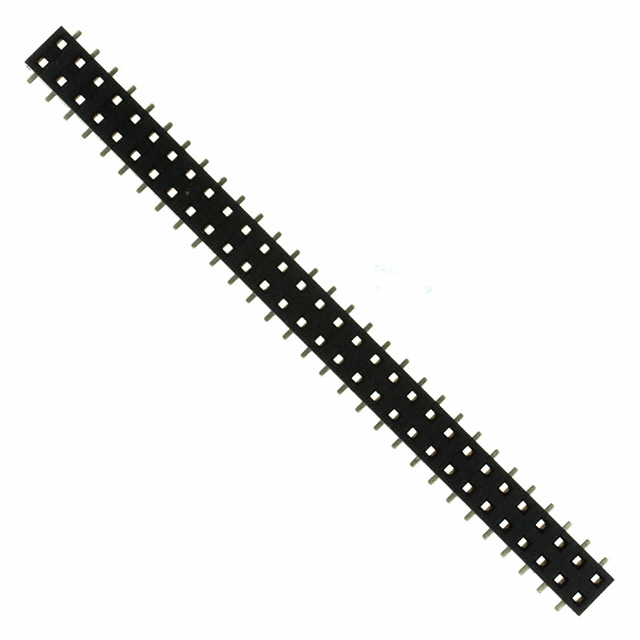

Sullins Connector Solutions NPPN302GFNS-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2 A	Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm			Surface Mount	60	Header Top or Bottom Entry	Female Socket	All	Gold

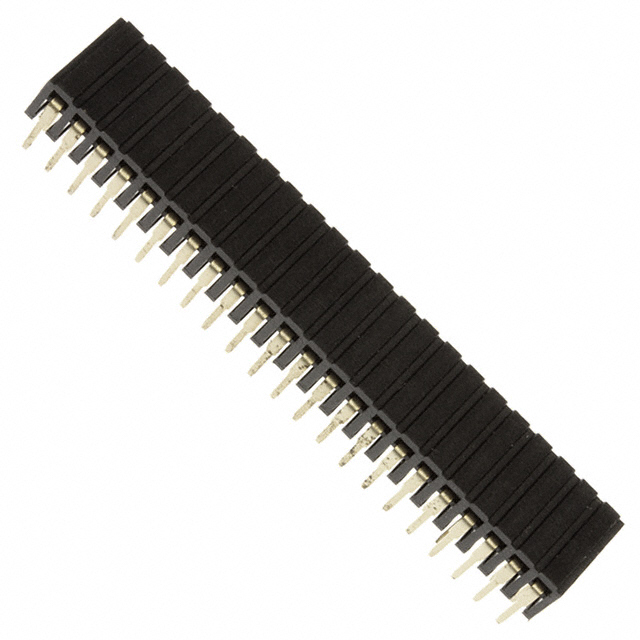

Sullins Connector Solutions NPPN302FJFN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0		Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm		4.85 mm	Right Angle Through Hole	60	Header	Female Socket	All	Gold	0.191 in	0.118 in	3 mm

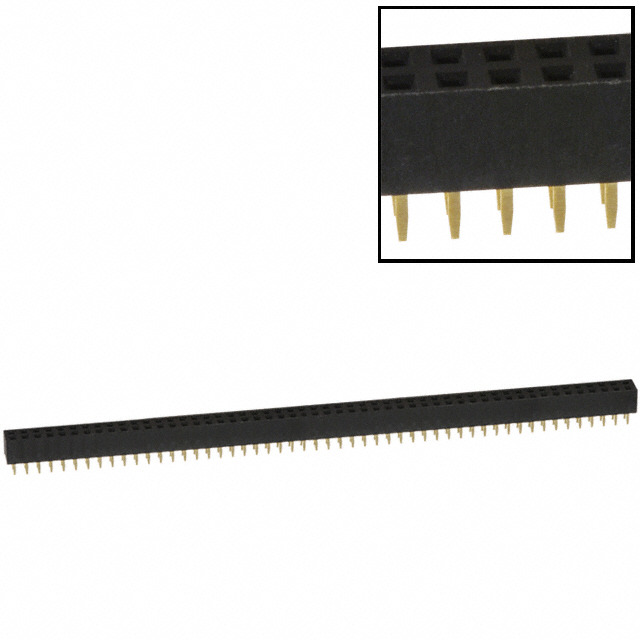

Sullins Connector Solutions NPPN302AFCN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0		Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm		4.3 mm	Through Hole	60	Header	Female Socket	All	Gold		0.094 in	2.4 mm	0.169 "

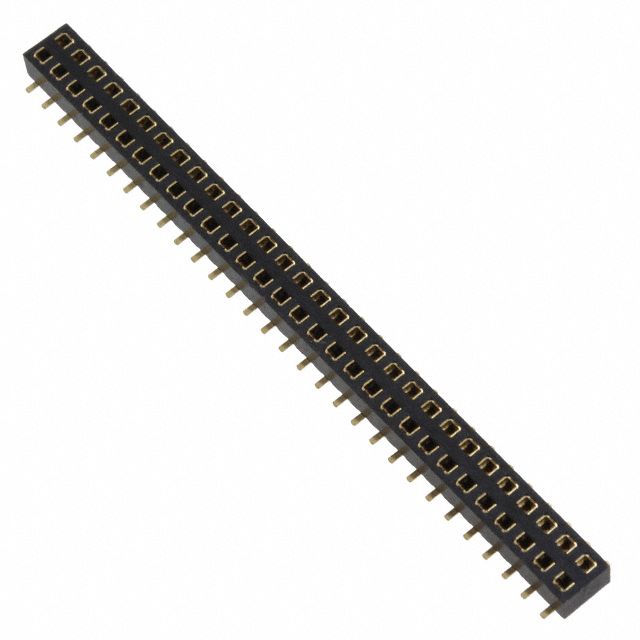

Sullins Connector Solutions NPPN302GHNP-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0		Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm			Surface Mount	60	Header Bottom Entry	Female Socket	All	Gold					Board Guide
Sullins Connector Solutions NPPN302AFEN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0		Flash	Black	2	Solder	Gold	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm		4.3 mm	Through Hole	60	Header	Female Socket	All	Gold			2.79 mm	0.169 "		0.11 in
