19307160 Series
Manufacturer: HARTING
Beta
⌘K
HAN 16B-GS-M40 - SCHWARZ
| Part | Style | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Features | Housing Color | Housing Finish | Connector Type | Lock Location | Thread Size | Size | Ingress Protection | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | ||||||||||||||||||

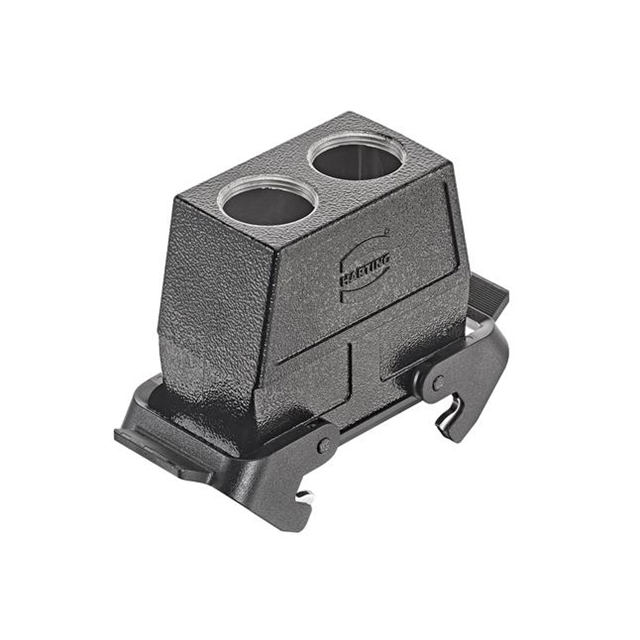

 HARTING | Bottom Entry Dual Top or Bottom Entry Dual | 125 °C | -40 C | 43 mm | 1.693 " | 93.5 mm | 3.681 in | 3.087 " | 78.4 mm | Cable to Cable | Black | Powder Coated | Hood - Coupling | Locking Clip (2) on Hood Top | M25 | 16 B | IP65 - Dust Tight Water Resistant | Aluminum Die Cast |

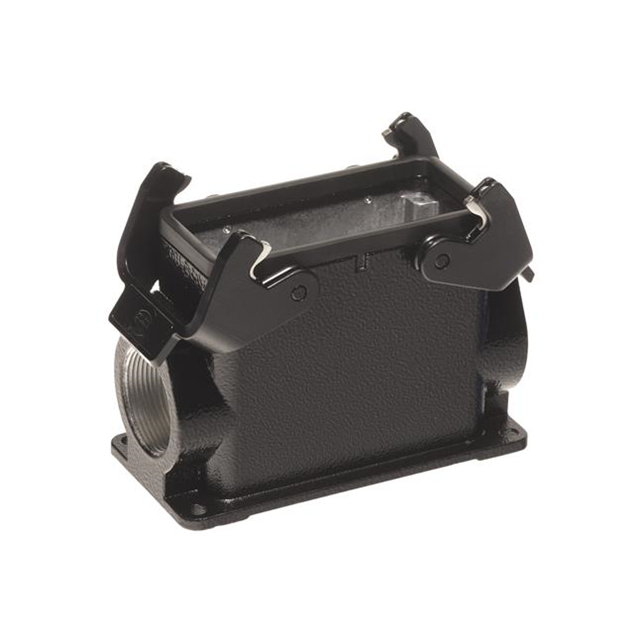

 HARTING | Side Entry | 125 °C | -40 C | 57 mm | 2.244 " | 117 mm | 4.606 in | 3.181 in | 80.8 mm | Black | Powder Coated | Base - Box Mount | Locking Clip (2) on Base Bottom | M32 | 16 B | IP65 - Dust Tight Water Resistant | Aluminum Die Cast |
