SK22BG Series
Manufacturer: NKK Switches
Beta
⌘K
KEYLOCK SWITCH, ON-NONE-ON, DPDT, 3 POSITION, SOLDER, 100 MA
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Voltage Rating - AC | Circuit | Current Rating (Amps) | Key Removable Positions | Switch Function | Angle of Throw | Features | Termination Style | Mounting Type | Actuator Type | Number of Positions | Contact Timing | Contact Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

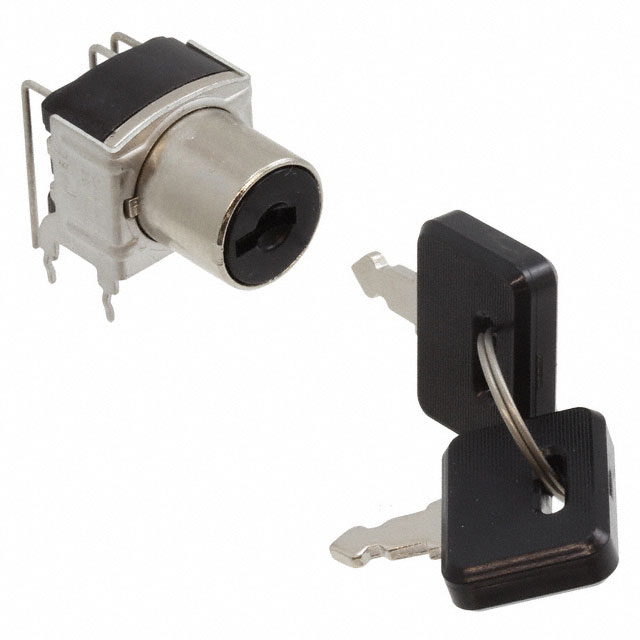

 NKK Switches | 30000 Steps | 10000 Cycles | 28 V | 28 V | DPDT | 0.4 VA | 1 | On-On | 90 ° | Process Sealed | PC Pin | Right Angle Through Hole | Flat Key | 2 | Non-Shorting (BBM) | Gold | Beryllium Copper | -25 °C | 70 °C |

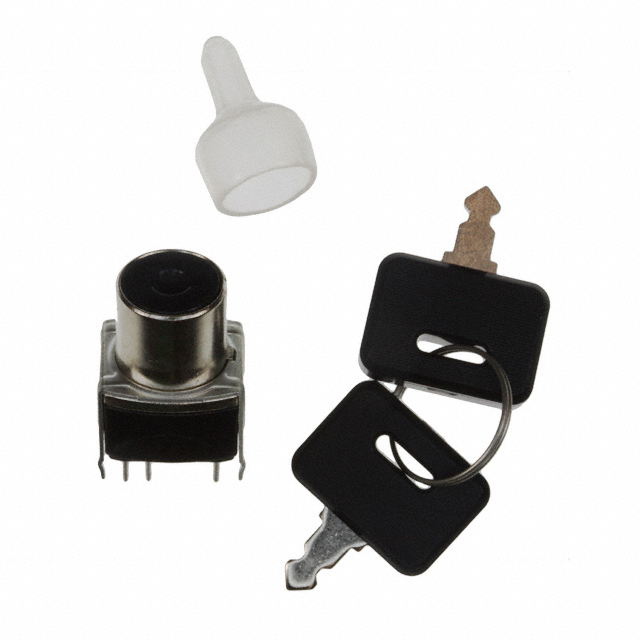

 NKK Switches | 30000 Steps | 10000 Cycles | 28 V | 28 V | DPDT | 0.4 VA | 1 | On-On | 90 ° | Process Sealed | PC Pin | Through Hole | Flat Key | 2 | Non-Shorting (BBM) | Gold | Beryllium Copper | -25 °C | 70 °C |
