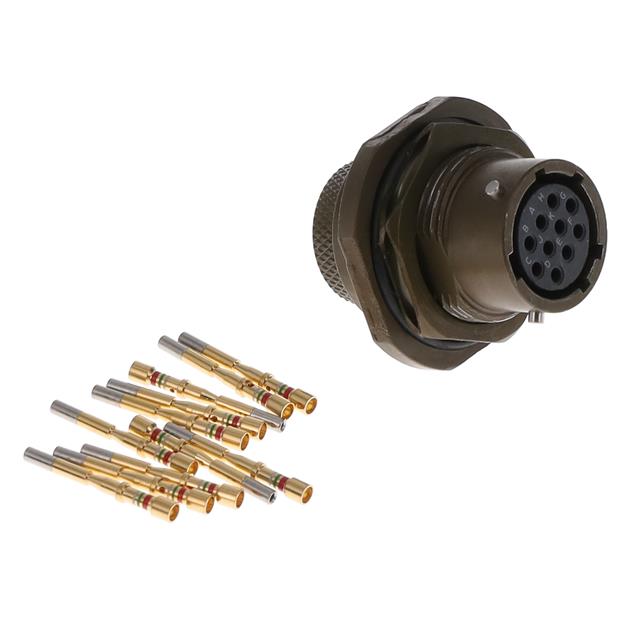

MS3124E12 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Contact Material | Insert Material | Shell Finish | Connector Type | Termination | Voltage Rating | Voltage Rating | Contact Finish - Mating | Shielding | Fastening Type | Primary Material | Current Rating (Amps) | Mounting Type | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Color | Orientation [z] | Ingress Protection | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Copper Alloy | Polychloroprene | Olive Drab Cadmium | Receptacle Female Sockets | Crimp | 600 VAC | 850 VDC | Gold | Unshielded | Bayonet Lock | Metal | 7.5 A | Panel Mount | Aluminum Alloy | 10 | -55 C | 125 °C | Bulkhead - Front Side Nut | Olive Drab | Z | Environment Resistant | 12-10 |
