C09131D Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 3P SOLDER CUP

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Fastening Type	Color	Primary Material	Current Rating (Amps)	Shell Size - Insert	Voltage Rating	Orientation	Contact Finish - Mating	Ingress Protection	Shell Finish	Mounting Type	Shielding	Connector Type	Number of Positions

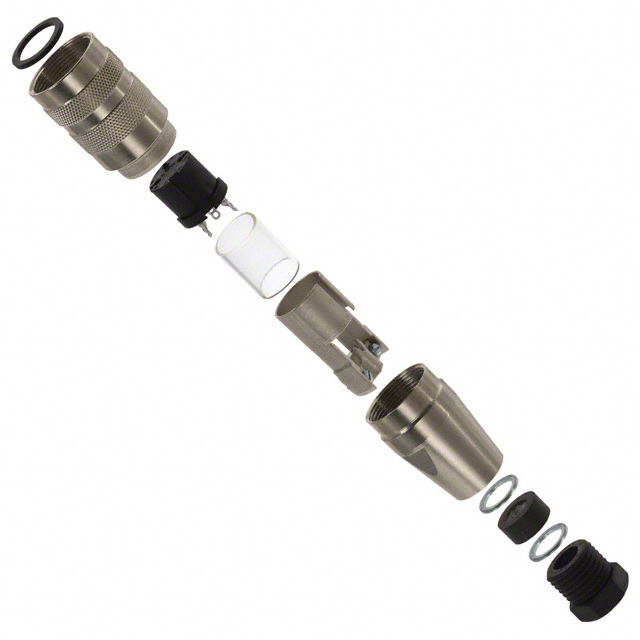

Amphenol Tuchel Industrial C09131D0031002U	Strain Relief	-40 C	100 °C	Die Cast	Threaded	Silver	Metal	10 A	M16-3	60 VDC	Keyed	Silver	IP65 IP67 IP69K	Nickel	Free Hanging (In-Line)	Shielded	Plug Female Sockets

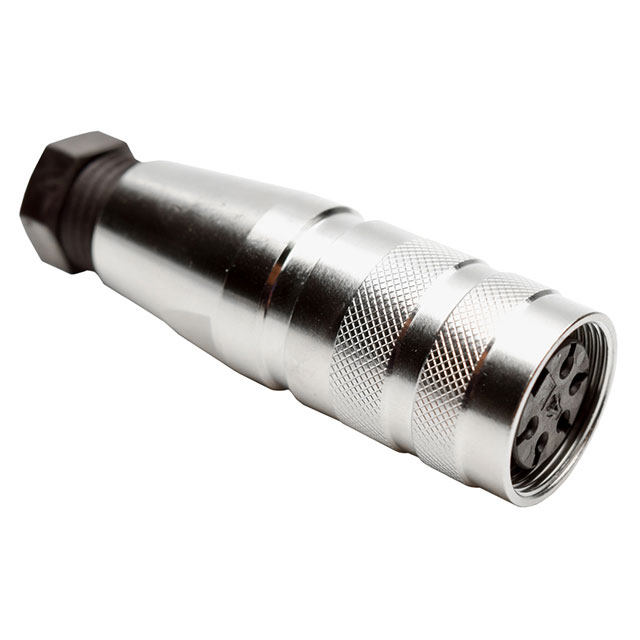

Amphenol Tuchel Industrial C09131D0051002U	Strain Relief	-40 C	100 °C	Die Cast	Threaded	Silver	Metal	7 A	M16-5	60 VDC	Keyed	Silver	IP65 IP67 IP69K	Nickel	Free Hanging (In-Line)	Shielded	Plug Female Sockets	5

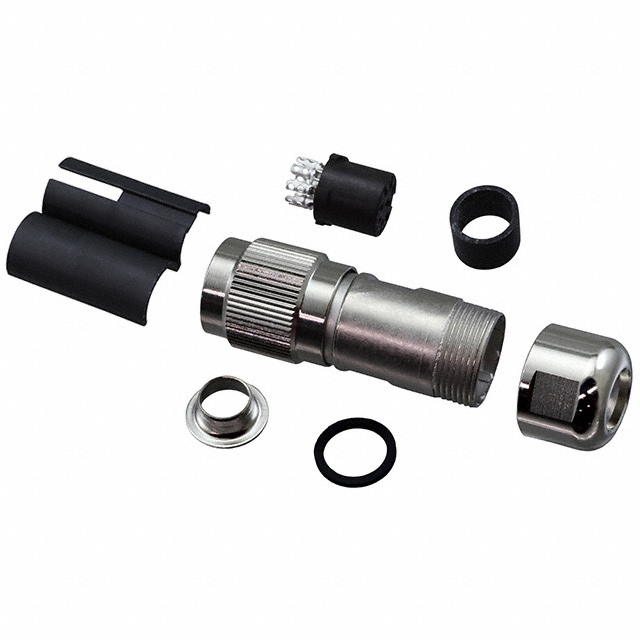

Amphenol Tuchel Industrial C09131D0081024U	Backshell Coupling Nut Strain Relief	-40 C	100 °C	Zinc Die Cast	Threaded	Silver	Metal		M16-8		Keyed	Silver	IP68 IP69K	Nickel	Free Hanging (In-Line)		Plug Female Sockets	8
Amphenol Tuchel Industrial C09131D0061014U	Backshell Coupling Nut Strain Relief	-40 C	100 °C	Zinc Die Cast	Threaded	Silver	Metal		M16-6		Keyed	Silver	IP68 IP69K	Nickel	Free Hanging (In-Line)		Plug Female Sockets	6

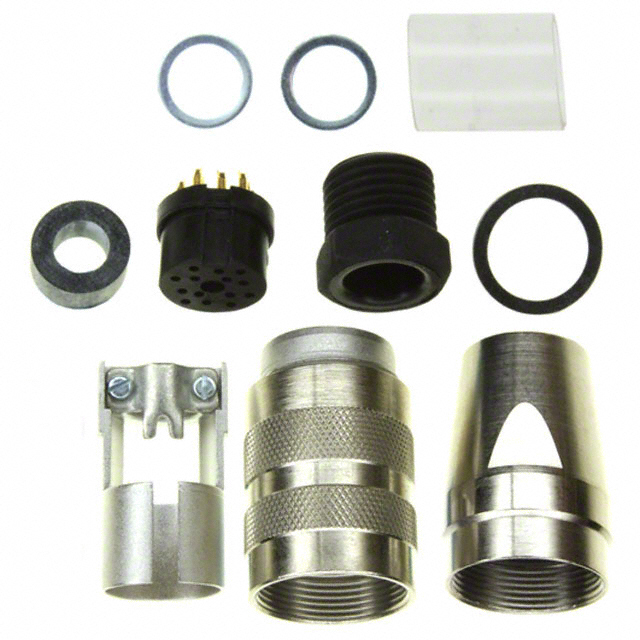

Amphenol Tuchel Industrial C09131D0122002U	Strain Relief	-40 C	100 °C	Die Cast	Threaded	Silver	Metal	3 A	M16-12	250 V	Keyed	Gold	IP65 IP67 IP69K	Nickel	Free Hanging (In-Line)	Shielded	Plug Female Sockets	12
Amphenol Tuchel Industrial C09131D0081014U	Backshell Coupling Nut Strain Relief	-40 C	100 °C	Zinc Die Cast	Threaded	Silver	Metal		M16-8		Keyed	Silver	IP68 IP69K	Nickel	Free Hanging (In-Line)		Plug Female Sockets	8

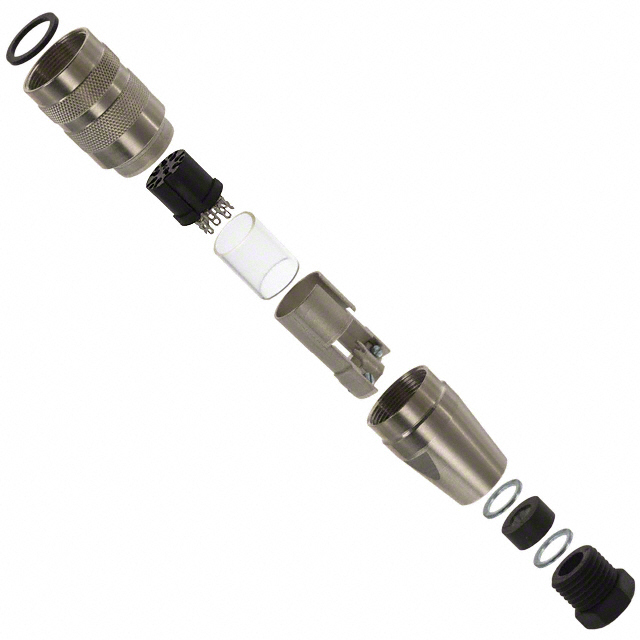

Amphenol Tuchel Industrial C09131D0081002U	Strain Relief	-40 C	100 °C	Die Cast	Threaded	Silver	Metal	7 A	M16-8	60 VDC	Keyed	Silver	IP65 IP67 IP69K	Nickel	Free Hanging (In-Line)	Shielded	Plug Female Sockets	8

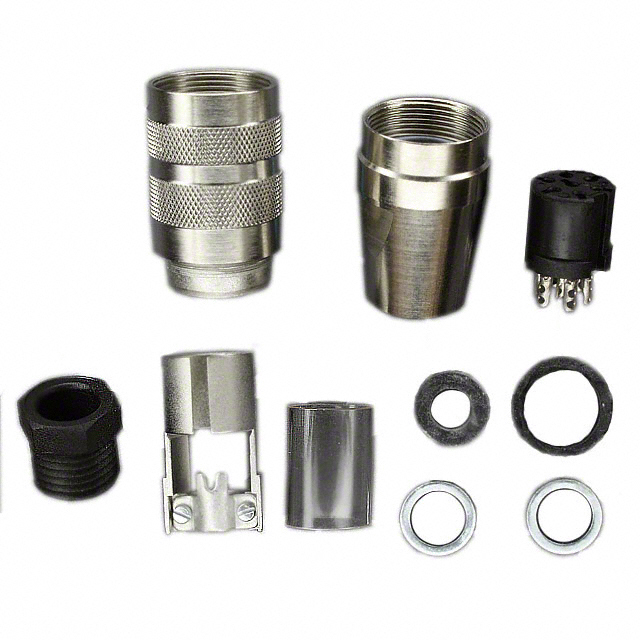

Amphenol Tuchel Industrial C09131D0071002U	Strain Relief	-40 C	100 °C	Die Cast	Threaded	Silver	Metal	7 A	M16-7	60 VDC	Keyed	Silver	IP65 IP67 IP69K	Nickel	Free Hanging (In-Line)	Shielded	Plug Female Sockets	7
