WR-70S-V Series
Manufacturer: JAE Electronics
Beta
⌘K

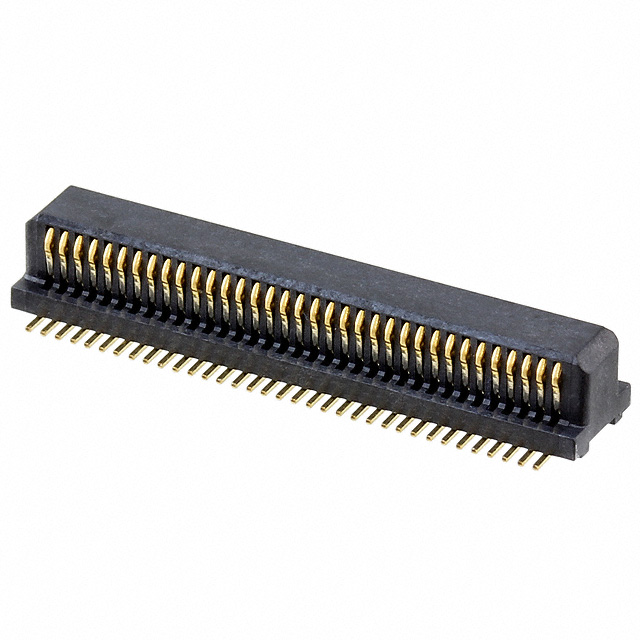

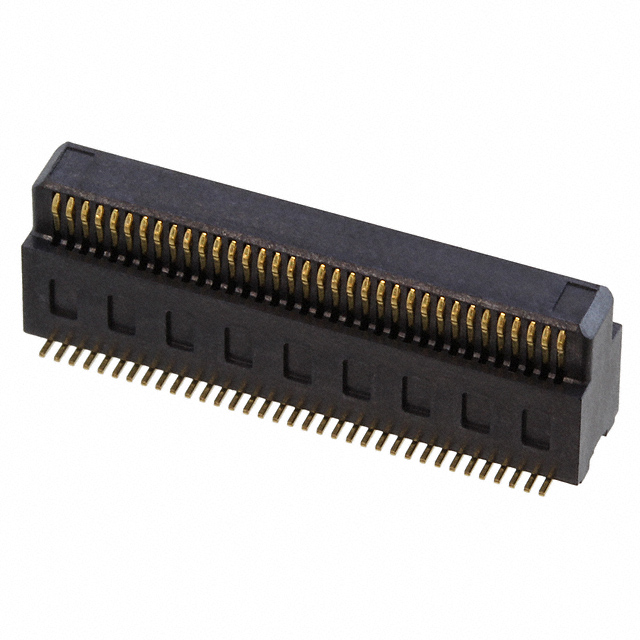

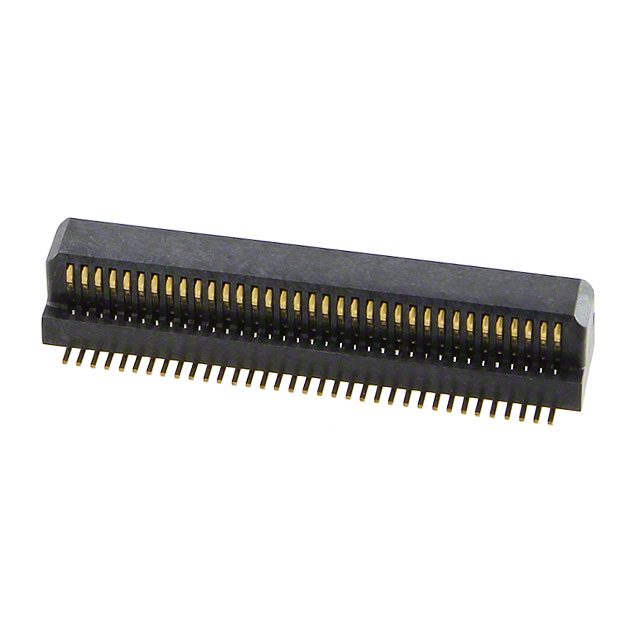

CONN RCPT 70POS SMD GOLD
| Part | Mated Stacking Heights | Contact Finish | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions | Height Above Board | Height Above Board [z] | Mounting Type | Number of Rows [custom] | Height Above Board [z] | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 7 mm 8 mm 9 mm | Gold | 0.02 " | 0.5 mm | 0.1 Ám | 4 Áin | Receptacle Center Strip Contacts | 70 | 6.25 mm | 0.246 in | Surface Mount | 2 | ||
 JAE Electronics | 4.5 mm 5.5 mm 6.5 mm | Gold | 0.02 " | 0.5 mm | 0.1 Ám | 4 Áin | Receptacle Center Strip Contacts | 70 | 0.148 in | Surface Mount | 2 | 3.75 mm | ||
 JAE Electronics | 7 mm 8 mm 9 mm | Gold | 0.02 " | 0.5 mm | 0.1 Ám | 4 Áin | Receptacle Center Strip Contacts | 70 | 6.25 mm | 0.246 in | Surface Mount | 2 | ||
JAE Electronics | 4.5 mm 5.5 mm 6.5 mm | Gold | 0.02 " | 0.5 mm | 0.1 Ám | 4 Áin | Receptacle Center Strip Contacts | 70 | 0.148 in | Surface Mount | 2 | 3.75 mm | ||
 JAE Electronics | 4 mm 5 mm 6 mm | Gold | 0.02 " | 0.5 mm | 0.1 Ám | 4 Áin | Receptacle Center Strip Contacts | 70 | 3.25 mm | Surface Mount | 2 | 0.128 in |
