LM3150 Series
Manufacturer: Texas Instruments
Beta
⌘K

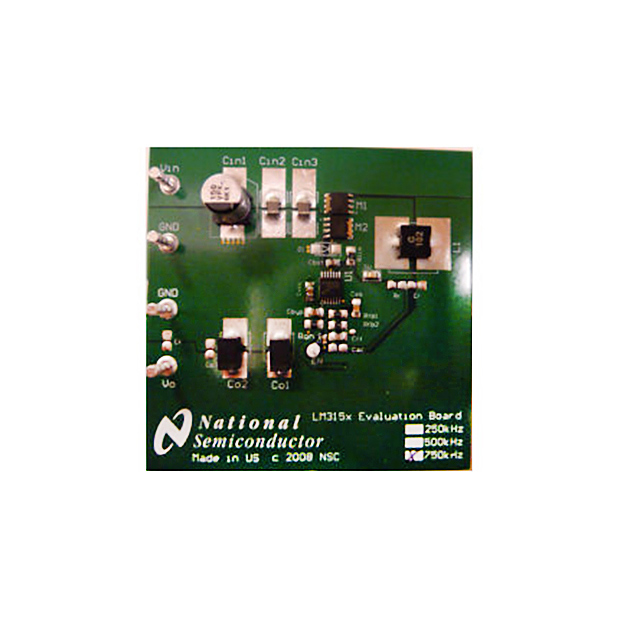

BOARD EVAL FOR LM3150-750
| Part | Regulator Topology | Current - Output | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Output | Frequency - Switching | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Supplied Contents | Output Type | Output Configuration | Synchronous Rectifier | Mounting Type | Frequency - Switching [Max] | Topology | Output Phases | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Package / Case | Package / Case [y] | Package / Case [x] | Number of Outputs | Clock Sync | Function | Control Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Buck | 10 A | Non-Isolated | 1 | LM3150 | 3.3 V | 750 kHz | Fully Populated | 8 V | 17 V | DC/DC Step Down | Board(s) | |||||||||||||||||||
 Texas Instruments | Transistor Driver | Positive | Surface Mount | 1 MHz | Buck | 1 | 14-HTSSOP | 6 V | 42 V | 14-PowerTSSOP | 4.4 mm | 0.173 in | 1 | Step-Down | Current Limit Enable On Time Control Soft Start | -40 °C | 125 ¯C | ||||||||||||||
Texas Instruments | Transistor Driver | Positive | Surface Mount | 1 MHz | Buck | 1 | 14-HTSSOP | 6 V | 42 V | 14-PowerTSSOP | 4.4 mm | 0.173 in | 1 | Step-Down | Current Limit Enable On Time Control Soft Start | -40 °C | 125 ¯C | ||||||||||||||

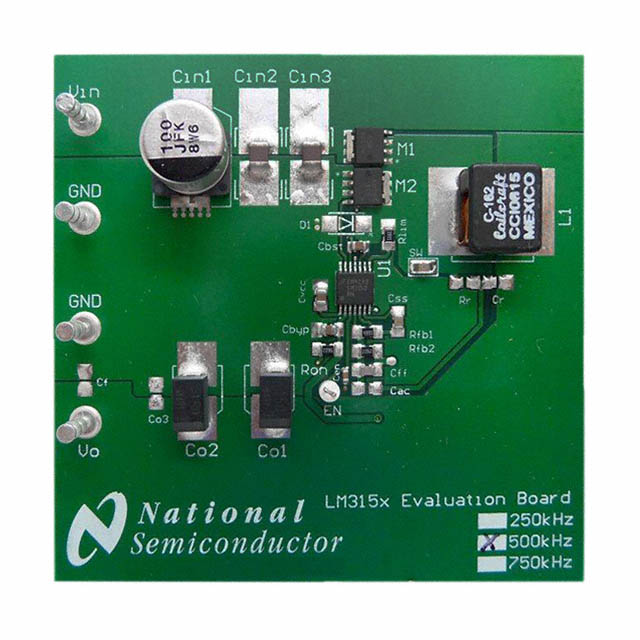

 Texas Instruments | Buck | 10 A | Non-Isolated | 1 | LM3150 | 3.3 V | 500 kHz | Fully Populated | 6 V | 24 V | DC/DC Step Down | Board(s) | |||||||||||||||||||
Texas Instruments | Transistor Driver | Positive | Surface Mount | 1 MHz | Buck | 1 | 14-HTSSOP | 6 V | 42 V | 14-PowerTSSOP | 4.4 mm | 0.173 in | 1 | Step-Down | Current Limit Enable On Time Control Soft Start | -40 °C | 125 ¯C |
