FR20C04H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
RECEPTACLE, THR, DUAL ROW, 2.00
| Part | Contact Material | Contact Shape | Insulation Material | Number of Positions | Mounting Type | Insulation Height | Insulation Height [z] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Type | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Termination | Number of Positions Loaded | Fastening Type | Number of Rows [custom] | Number of Rows | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

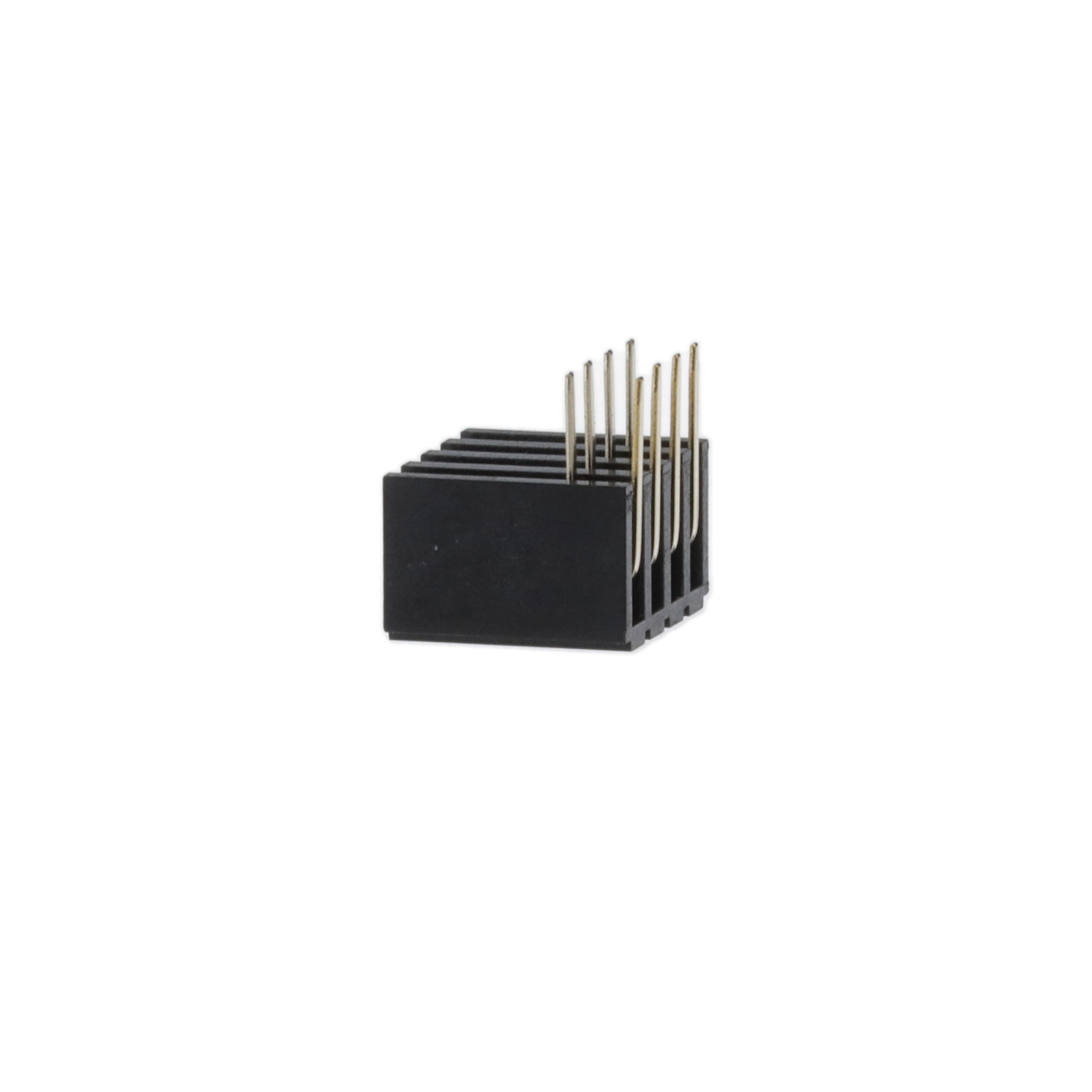

 METZ CONNECT USA Inc. | Copper Alloy | Square | Polyester Polyethylene Terephthalate (PET) | 4 | Right Angle Through Hole | 4.85 mm | 0.191 in | Receptacle | -40 C | 105 ░C | Black | 0.079 " | 2 mm | Gold | Female Socket | Flash | 2 mm | 0.079 in | 0.1 in | 2.54 mm | Solder | All | Push-Pull | 2 | ||

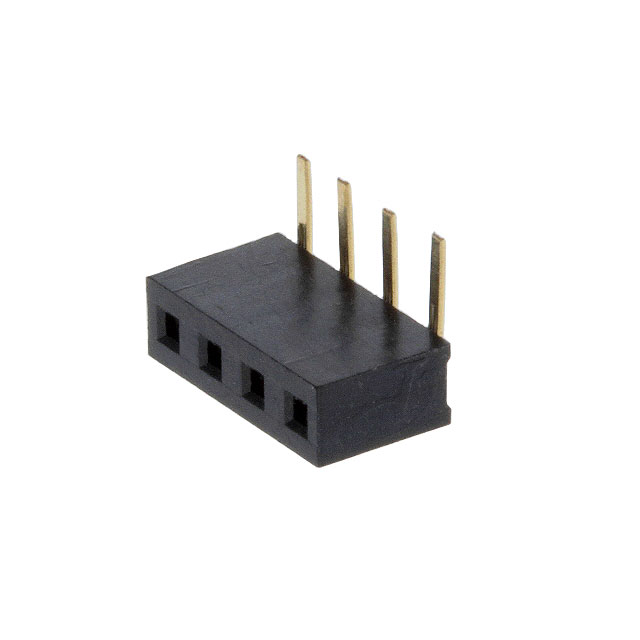

 METZ CONNECT USA Inc. | Copper Alloy | Square | Polyester Polyethylene Terephthalate (PET) | 4 | Right Angle Through Hole | Receptacle | -40 C | 105 ░C | Black | 0.079 " | 2 mm | Gold | Female Socket | Flash | 0.1 in | 2.54 mm | Solder | All | Push-Pull | 1 | IP00 |
