SX014 Series

Catalog

SCR 900V 1.25A TO92CR

Part	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	SCR Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Package / Case	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max] [custom]

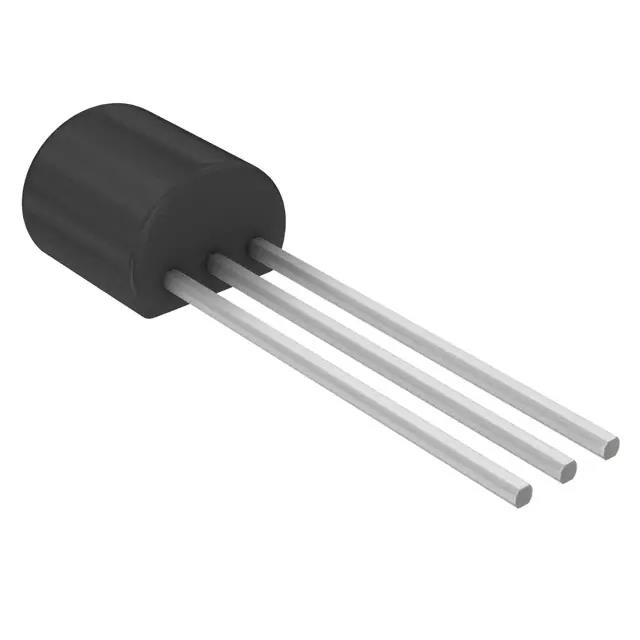

SMC Diode Solutions SX014CR	900 V	1.25 A	20 A	Through Hole	Sensitive Gate	-40 °C	110 °C	TO-92	TO-226AA	TO-226-3 TO-92-3	800 mV	200 µA	1.5 V	4 mA	5 µA
