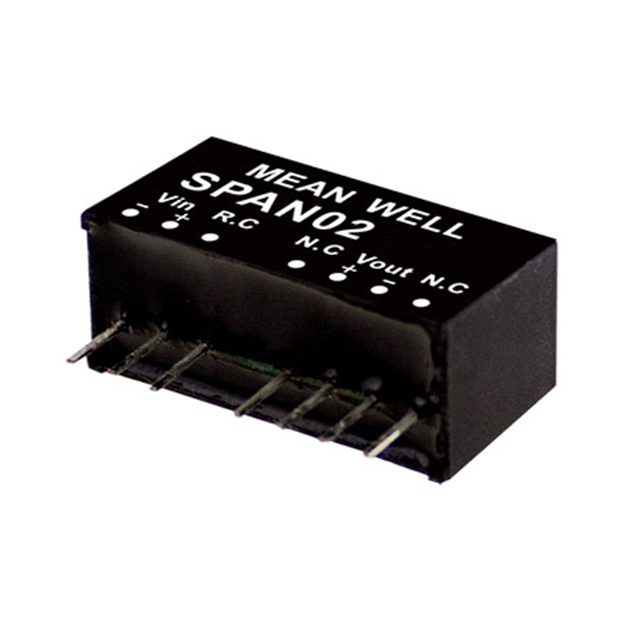

SPAN02 Series

Catalog

DC DC CONVERTER 12V 2W

Part	Features	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. SPAN02A-12	OCP Remote On/Off SCP UVLO	Through Hole	18 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	12 V	9 V	167 mA	ITE (Commercial)	83 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02C-05	OCP Remote On/Off SCP UVLO	Through Hole	75 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	5 V	36 V	400 mA	ITE (Commercial)	80 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02C-12	OCP Remote On/Off SCP UVLO	Through Hole	75 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	12 V	36 V	167 mA	ITE (Commercial)		1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02E-05	OCP Remote On/Off SCP UVLO	Through Hole	9 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	5 V	4.5 V	400 mA	ITE (Commercial)	78 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02A-15	OCP Remote On/Off SCP UVLO	Through Hole	18 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	15 V	9 V	134 mA	ITE (Commercial)	84 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02C-15	OCP Remote On/Off SCP UVLO	Through Hole	75 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	15 V	36 V	134 mA	ITE (Commercial)	83 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
MEAN WELL USA Inc. SPAN02A-05	OCP Remote On/Off SCP UVLO	Through Hole	18 V	8-SIP Module 7 Leads	90 °C	-40 °C	2 W	Isolated Module	1.5 kV	5 V	9 V	400 mA	ITE (Commercial)	80 %	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm
