BC065 Series
Manufacturer: GCT
Beta
⌘K

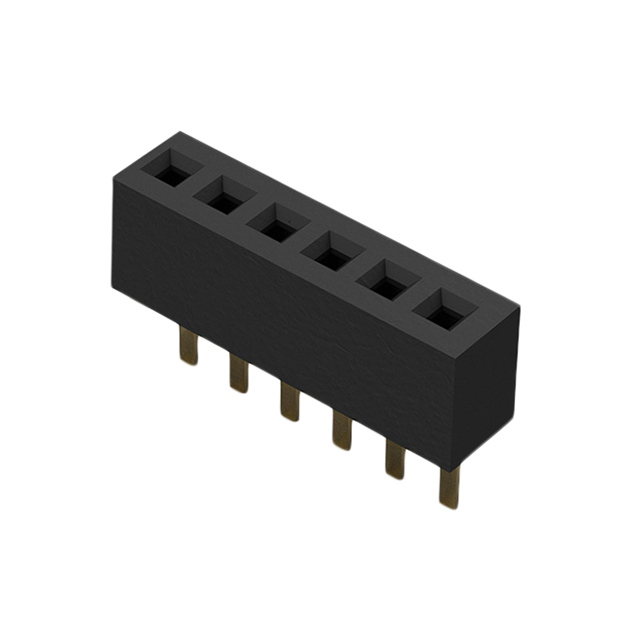

6POS 1.0MM PITCH SOCKET, SIL, TH
| Part | Material Flammability Rating | Fastening Type | Number of Positions Loaded | Current Rating (Per Contact) | Pitch - Mating | Contact Type | Termination | Contact Finish - Post | Connector Type | Voltage Rating | Style | Insulation Height | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Mating | Contact Length - Post | Insulation Color | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Contact Material | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) | Voltage Rating (Type) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-0 | Push-Pull | All | 1 A | 0.039 in | Female Socket | Solder | Gold | Receptacle | 250 V | Board | 0.083 in | Flash | 1 | Gold | 0.071 in | Black | 6 | -40 °C | 105 °C | Through Hole | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Square | Flash | Flash | |||
UL94 V-0 | Push-Pull | All | 1 A | 0.039 in | Female Socket | Solder | Gold | Receptacle | 250 V | Board | 0.083 in | Flash | 1 | Gold | 0.071 in | Black | 24 pos | -40 °C | 105 °C | Through Hole | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Square | Flash | Flash | DC | Pick and Place | |

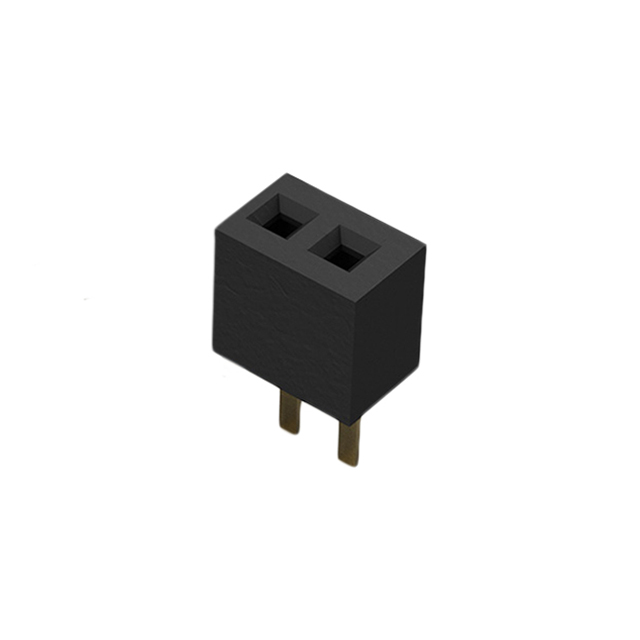

UL94 V-0 | Push-Pull | All | 1 A | 0.039 in | Female Socket | Solder | Gold | Receptacle | 250 V | Board | 0.083 in | Flash | 1 | Gold | 0.071 in | Black | 2 | -40 °C | 105 °C | Through Hole | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Square | Flash | Flash | |||
UL94 V-0 | Push-Pull | All | 1 A | 0.039 in | Female Socket | Solder | Gold | Receptacle | 250 V | Board | 0.083 in | Flash | 1 | Gold | 0.071 in | Black | 19 | -40 °C | 105 °C | Through Hole | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Square | Flash | Flash | DC | Pick and Place |
