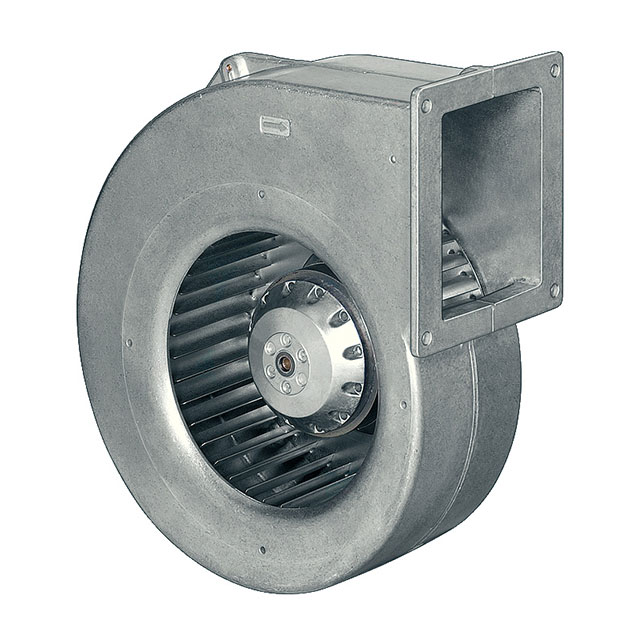

G4E180 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS AC CENTRIFUGAL BLOWER, 180MM ROUND, 230VAC, 350CFM
| Part | Voltage - Rated | Noise | Termination | Fan Type | Width [y] | RPM | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Air Flow | Bearing Type | Weight | Weight | Material - Blade | Material - Frame | Current Rating (Amps) | Ingress Protection | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Features | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 230 VAC | 65 dB | 2 Wire Leads | Blower Centrifugal | 125 mm | 1300 RPM | 145 W | 80 °C | -40 C | 9.8 m³/min | 350 CFM | Ball | 8.2 lbs | 3.7 kg | ||||||||||
 ebm-papst Inc. | 115 VAC | 65 dB | 2 Wire Leads | Blower Centrifugal | 125 mm | 146 W | 9.8 m³/min | 350 CFM | Ball | 8.2 lbs | 3.7 kg | Steel | Aluminum | |||||||||||
 ebm-papst Inc. | 230 VAC | 4 Wire Leads | Blower Centrifugal | 183 mm | 1170 RPM | 200 Watts | 35 °C | -25 °C | Ball | Steel | Steel | 880 mA | IP44 | Rectangular/Rounded | 332 mm | 295 mm | Capacitor Thermal Overload Protector (TOP) | 0.201 in H2O | 50 Pa |
