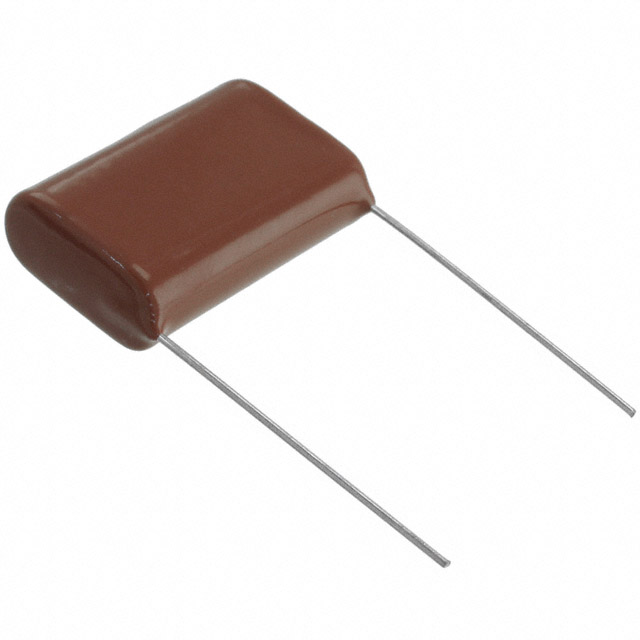

ECQ-E2565 Series

Catalog

CAP FILM 5.6UF 5% 250VDC RADIAL

Part	Package / Case	Termination	Applications	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Dielectric Material	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2565JFB	Radial	PC Pins	General Purpose	5 %	5.6 µF	0.886 in	22.5 mm	31 mm	0.465 "	1.22 in	11.8 mm	Through Hole	Polyester Metallized	250 V	-40 C	105 ░C	26 mm	1.024 in
Panasonic Electronic Components ECQ-E2565JF	Radial	PC Pins	General Purpose	5 %	5.6 µF	1.083 in	27.5 mm	31 mm	0.465 "	1.22 in	11.8 mm	Through Hole	Polyester Metallized	250 V	-40 C	105 ░C			0.886 in	22.5 mm
Panasonic Electronic Components ECQ-E2565KFB	Radial	PC Pins	General Purpose	10 %	5.6 µF	0.886 in	22.5 mm	31 mm	0.465 "	1.22 in	11.8 mm	Through Hole	Polyester Metallized	250 V	-40 C	105 ░C	26 mm	1.024 in
