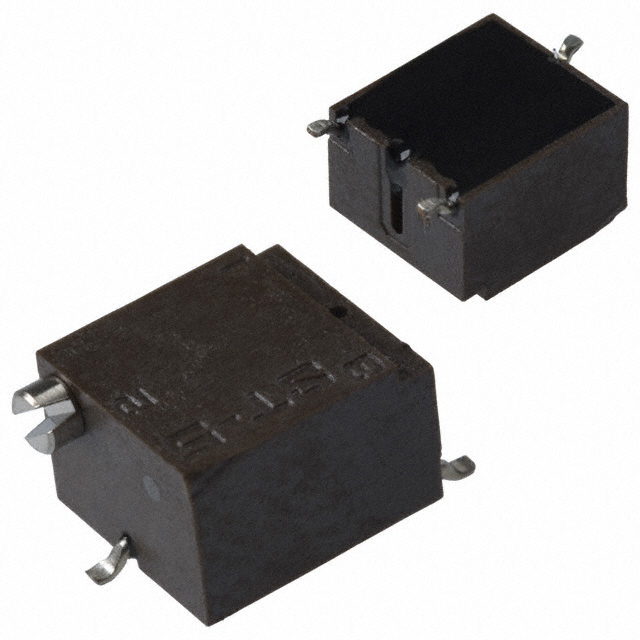

ST5ETP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 2K OHM 0.25W GW SIDE ADJ

Part	Number of Turns	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistive Material	Termination Style
Nidec Components Corporation ST-5ETP202	14	10 %	2 kOhms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP203	14	10 %	20 kOhms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP500	14	10 %	50 Ohms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	250 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP101	14	10 %	100 Ohms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP204	14	10 %	200000 Ohms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP504	14	10 %		0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP103	14	10 %	10000 Ohms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP205	14	10 %	2 MOhms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP501	14	10 %	0.5 kOhms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
Nidec Components Corporation ST-5ETP503	14	10 %	50000 Ohms	0.266 in 6.75 mm	0.236 in 6 mm	Side Adjustment	Surface Mount	100 ppm/°C	0.25 W	0.25 W	Cermet	Gull Wing
