CAB432RF Series
Manufacturer: GCT
Beta
⌘K

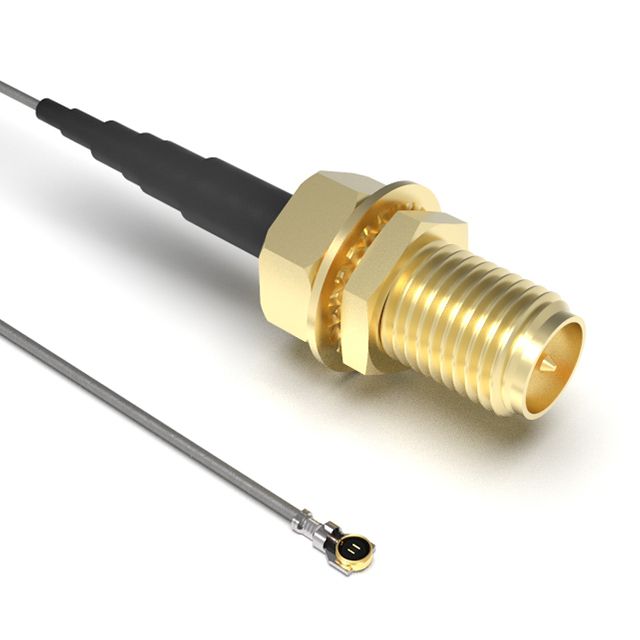

CBL ASSY RPSMA-MHF5L J-PL 7.874"
| Part | 1st Contact Gender | Cable Type | Cable Type [diameter] | Frequency - Max [Max] | 1st Connector | Overall Impedance | 2nd Contact Gender | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | 2nd Connector | 2nd Connector Mounting Type | Cable Impedance | 1st Connector Mounting Type | 1st Connector Mounting Feature | Color | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Male | Coaxial Cable | 1.13 mm | 6000 MHz | RP-SMA Jack | 50 Ohms | Female | 85 °C | -40 C | 200 mm | 7.874 in | IPEX MHF5L Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Gray | RP-SMA to IPEX MHF5L | |
Male | Coaxial Cable | 1.13 mm | 6000 MHz | RP-SMA Jack | 50 Ohms | Female | 85 °C | -40 C | 200 mm | 7.874 in | I-PEX MHF5L Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Gray | RP-SMA to I-PEX MHF5L |
