CAH.M3 Series
Manufacturer: LEMO
Beta
⌘K

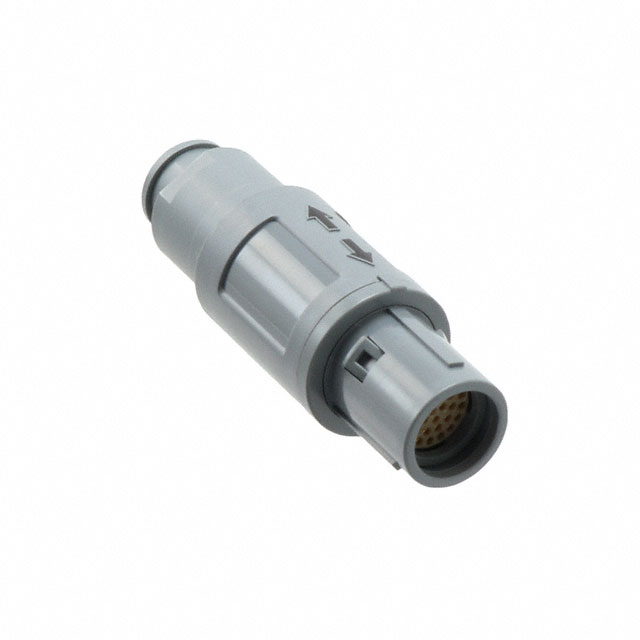

CONN PLUG FMALE 34P SOLDER CUP
| Part | Color | Ingress Protection | Applications | Insert Material | Orientation | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Fastening Type | Current Rating (Amps) | Shell Size - Insert | Mounting Type | Shielding | Shell Material | Features | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions [custom] | Backshell Material, Plating | Primary Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gray | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Polyetheretherketone (PEEK) | H | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | Detent Lock Push-Pull | 1.5 A | M34 | Free Hanging (In-Line) | Unshielded | Polyetherimide (PEI) | Backshell | Gold | 170 °C | -50 °C | 34 | Polyetherimide (PEI) | Plastic | Plug Female Sockets |
