SQR70090 Series

Catalog

MOSFET N-CH 100V 86A DPAK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Qualification	Power Dissipation (Max)	Supplier Device Package	Grade	FET Type	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Drain to Source Voltage (Vdss)	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds

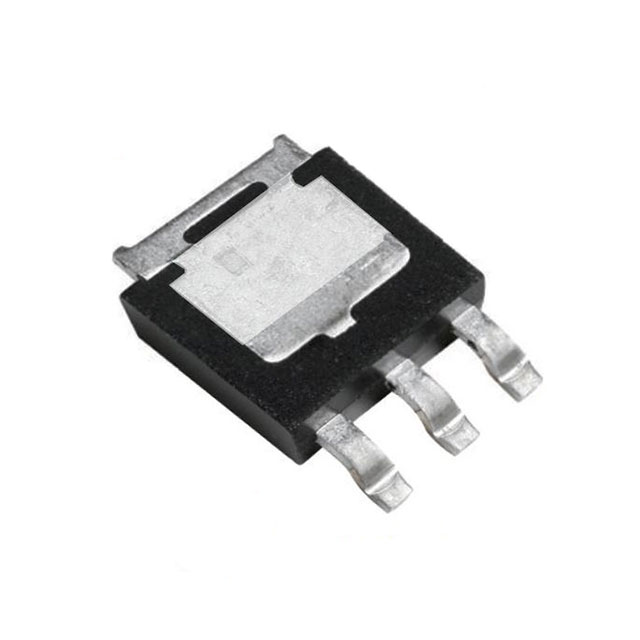

Vishay General Semiconductor - Diodes Division SQR70090ELR_GE3	-55 °C	175 ░C	20 V	AEC-Q101	136 W	DPAK	Automotive	N-Channel	8.7 mOhm	65 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	4.5 V 10 V	Surface Mount	100 V	MOSFET (Metal Oxide)	2.5 V	86 A	3500 pF
