XZMYK53 Series

Manufacturer: SunLED

Catalog

LED YELLOW CLEAR 0603 SMD

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Size [x]	Lens Size [y]	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Lens Style	Current - Test	Lens Transparency	Wavelength - Dominant	Mounting Type	Viewing Angle	Wavelength - Peak	Package / Case	Package / Case	Color	Configuration	Height (Max) [z]	Supplier Device Package
SunLED XZMYK53S-4	2 V	238 mcd	1.4 mm	0.8 mm	Colorless	1.6 mm	0.8 mm	0.7 mm	Rectangle with Flat Top	20 mA	Clear	590 nm	Surface Mount	120 °	590 nm	1608 Metric	0603	Yellow
SunLED XZMYK53W-3	2 V	148 mcd	1.1 mm	0.8 mm	Colorless	1.6 mm	0.8 mm		Rectangle with Flat Top	20 mA	Clear	590 nm	Surface Mount	120 °	590 nm	1608 Metric	0603	Yellow	Standard	0.45 mm	Chip LED

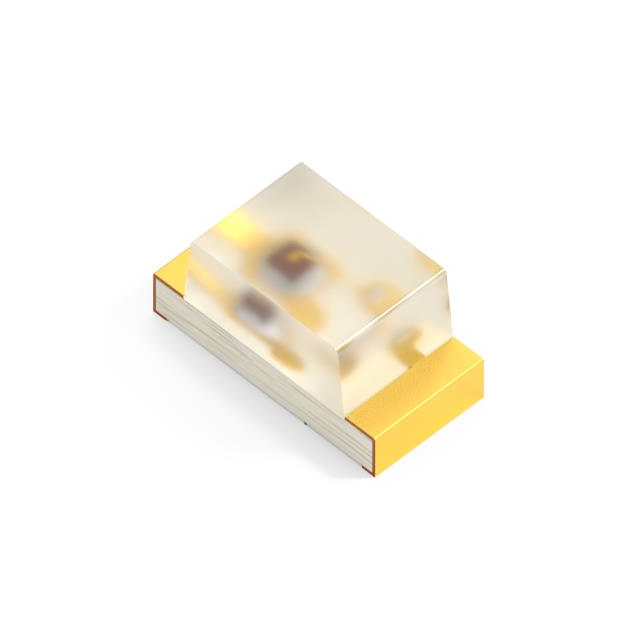

SunLED XZMYK53W-1	2 V	148 mcd	1.1 mm	0.8 mm	Colorless	1.6 mm	0.8 mm		Rectangle with Flat Top	20 mA	Clear	590 nm	Surface Mount	120 °	590 nm	1608 Metric	0603	Yellow	Standard		Chip LED
