BU160Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

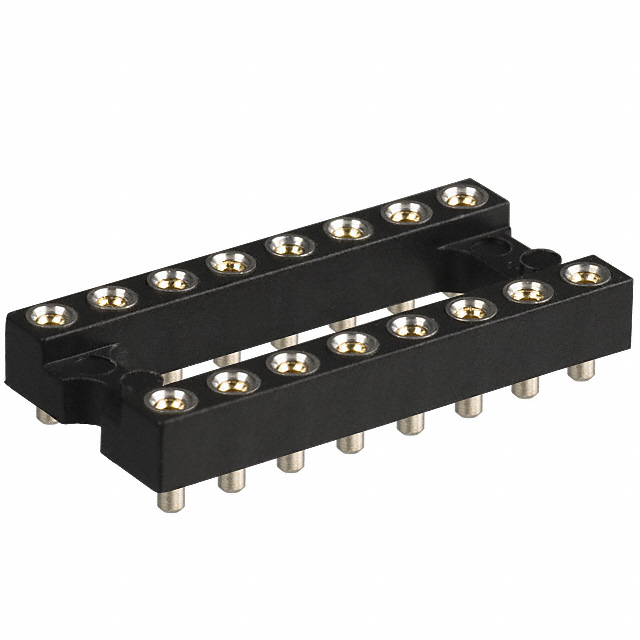

CONN IC DIP SOCKET 16POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Termination Post Length | Termination Post Length | Contact Finish - Post | Mounting Type | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Type | Type | Type | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Contact Material - Mating | Housing Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 1 A | 7 mOhm | 0.059 " | 1.5 mm | Copper | Surface Mount | Flash | 0.1 in | 2.54 mm | Brass | -55 C | 125 °C | 78.7 µin | 2 µm | Gold | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Open Frame | 2 | 16 | 8 | Beryllium Copper | Polybutylene Terephthalate (PBT) Glass Filled | Solder |
