TE120A2402 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

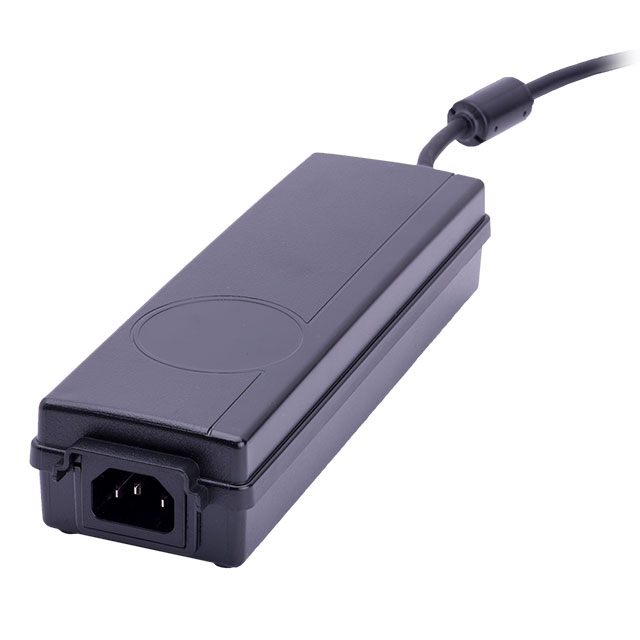

AC/DC DESKTOP ADAPTER 24V 120W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Form | Applications | Region Utilized | Cord Length | Cord Length | Approval Agency | Input Connector | Voltage - Output | Output Connector [diameter] | Output Connector [x] | Output Connector | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) | Input Type | Polarization | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | -20 ░C | 50 °C | Desktop (Class II) | ITE (Commercial) | International | 1.2 m | 47.2 in | CE cULus | IEC 320-C8 | 24 V | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 8.36 " | 2.65 " | 1.74 " | 44.3 mm | 212.4 mm | 67.4 mm | 5 A | Cord (Sold Separately) | Positive Center | 120 W | 264 VAC | 90 VAC | 210 mW | Level VI |
