B1232H Series

Catalog

FAN BLOWER 120X32MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	RPM	Voltage - Rated	Width [y]	Features	Noise	Static Pressure	Static Pressure	Termination	Weight	Weight	Air Flow	Air Flow	Approval Agency	Fan Type	Bearing Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Weight [custom]	Weight [custom]

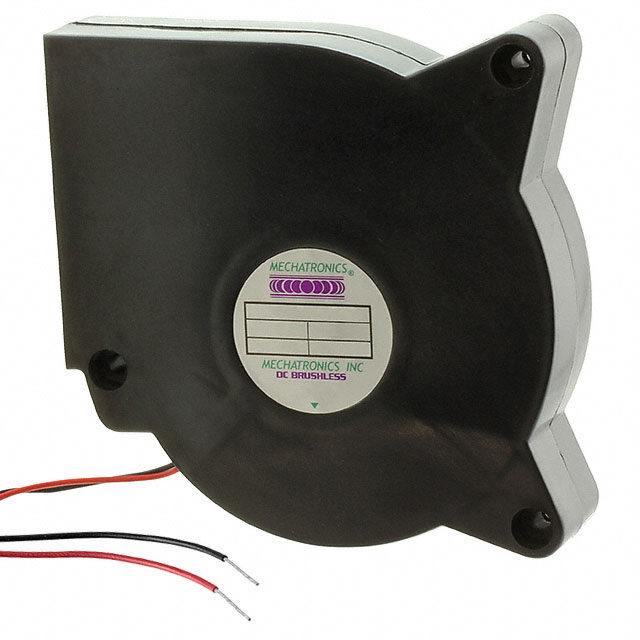

Mechatronics Fan Group B1232H12B-BSR-E	Polybutylene Terephthalate (PBT)	800 mA	2800 RPM	12 VDC	32 mm	Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	2 Wire Leads	0.706 lb	320.24 g	28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H12B-BSR	Polybutylene Terephthalate (PBT)	800 mA	2800 RPM	12 VDC	32 mm	Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	2 Wire Leads			28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm	5.5 VDC	14 V	319.78 g	0.705 lb
Mechatronics Fan Group B1232H24B-BSR-E	Polybutylene Terephthalate (PBT)	480 mA	2800 RPM	24 VDC	32 mm	Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	2 Wire Leads	0.706 lb	320.24 g	28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm

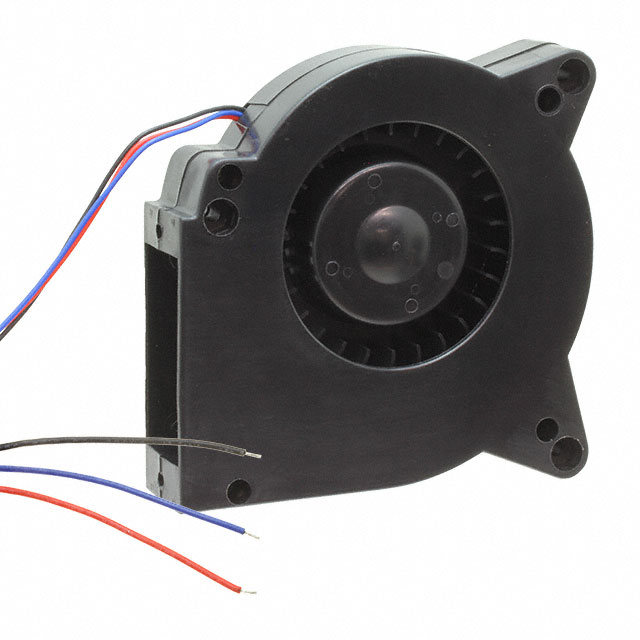

Mechatronics Fan Group B1232H12B6-BSR	Polybutylene Terephthalate (PBT)	800 mA	2800 RPM	12 VDC	32 mm	PWM Control Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	3 Wire Leads	0.706 lb	320.24 g	28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H12B-BSR-I832	Polybutylene Terephthalate (PBT)	800 mA	2800 RPM	12 VDC	32 mm	Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	2 Wire Leads	0.706 lb	320.24 g	28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H12B-BSR-E-CC-IM4	Polybutylene Terephthalate (PBT)	800 mA	2800 RPM	12 VDC	32 mm	Conformal Coating Thermal Overload Protector (TOP)	49 dB	0.68 in H2O	169.4 Pa	2 Wire Leads	0.706 lb	320.24 g	28 CFM	0.784 m³/min	CE cUL TUV UL	Blower	Ball	Square/Rounded	120 mm	120 mm
