PPPC191 Series

Catalog

CONN HDR 19POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Connector Type	Fastening Type	Termination	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Material Flammability Rating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Mounting Type	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post

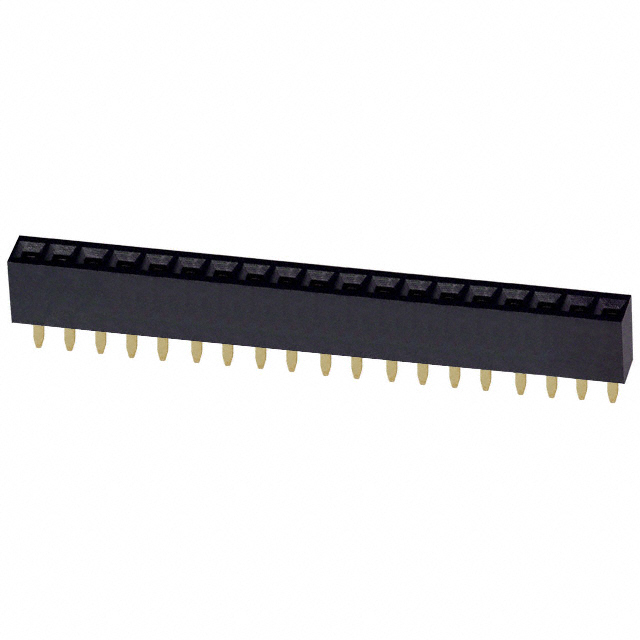

Sullins Connector Solutions PPPC191LFBN-RC	Polyester	Square	Phosphor Bronze	Flash	Header	Push-Pull	Solder	Black	All	-40 C	105 ░C	0.126 "	3.2 mm	250 V	UL94 V-0	Flash	19	Gold	1	0.1 "	2.54 mm	Gold	Female Socket	Through Hole	3 A	0.335 "	8.51 mm
Sullins Connector Solutions PPPC191LGBN	Polyester	Square	Phosphor Bronze	Flash	Header	Push-Pull	Solder	Black	All	-40 C	105 ░C			250 V	UL94 V-0	Flash	19	Gold	1	0.1 "	2.54 mm	Gold	Female Socket	Right Angle Through Hole	3 A	0.1 in	2.54 mm	0.124 in	3.15 mm

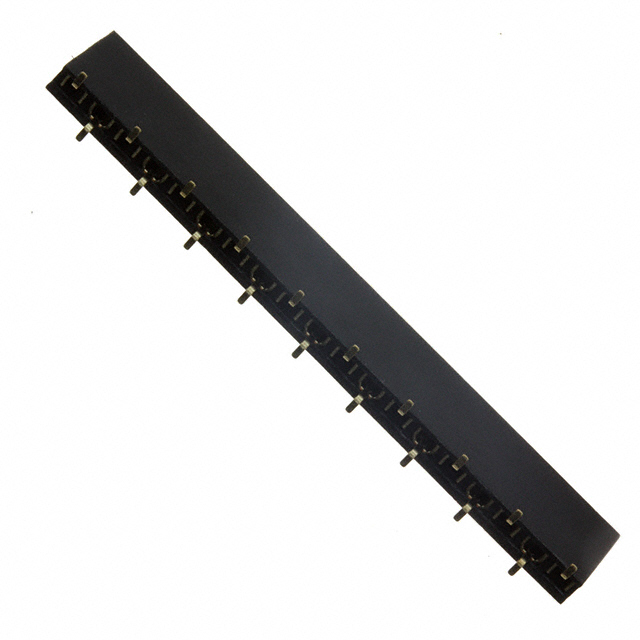

Sullins Connector Solutions PPPC191KFXC	Polyester	Square	Phosphor Bronze	Flash	Header Top or Bottom Entry	Push-Pull	Solder	Black	All	-40 C	105 ░C			250 V	UL94 V-0	Flash	19	Gold	1	0.1 "	2.54 mm	Gold	Female Socket	Surface Mount	3 A	0.28 in	7.1 mm
