821B Series

Catalog

CIRCULAR CONNECTOR, QUIK-LOQ 821B SERIES, CABLE MOUNT PLUG, 7 CONTACTS, SOLDER PIN, PUSH-PULL

Part	Mounting Type	Backshell Material, Plating	Fastening Type	Shell Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max]	Cable Opening [Min]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Primary Material	Insert Material	Contact Material	Features	Number of Positions	Applications	Shell Finish	Shielding	Current Rating (Amps)	Color	Connector Type	Orientation	Cable Opening [Max]	Cable Opening [Min]	Mounting Feature	Cable Opening	Cable Opening
NorComp Inc. 821B007-173L501	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.205 in 5.2 mm	0.169 " 4.3 mm	315 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Plug Male Pins	Keyed
NorComp Inc. 821B006-273L501	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.205 in 5.2 mm	0.169 " 4.3 mm	350 VDC	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Receptacle Female Sockets	Keyed
NorComp Inc. 821B006-273L301	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.126 in	0.098 in	350 VDC	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Receptacle Female Sockets	Keyed	3.2 mm	2.5 mm
NorComp Inc. 821B014-203R001	Panel Mount		Push-Pull	Brass	Gold	-40 C	200 °C			260 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy		14	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	2 A	Silver	Receptacle Female Sockets	Keyed			Bulkhead - Front Side Nut
NorComp Inc. 821B014-173L301	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.126 in	0.098 in	260 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	14	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	2 A	Black Silver	Plug Male Pins	Keyed	3.2 mm	2.5 mm

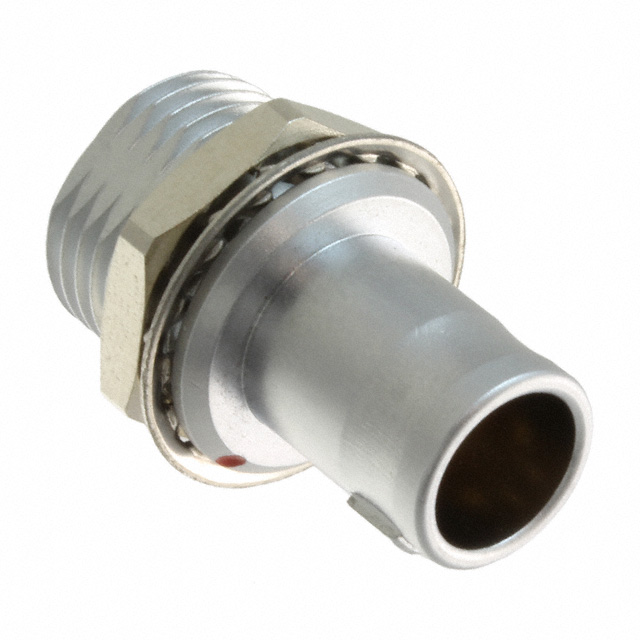

NorComp Inc. 821B003-103R001	Panel Mount		Push-Pull	Brass	Gold	-40 C	200 °C			430 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy			Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	12 Amps	Silver	Plug Male Pins	Keyed			Bulkhead - Rear Side Nut	0.413 in	10.5 mm
NorComp Inc. 821B002-173L301	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.126 in	0.098 in	500 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	2	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	15 A	Black Silver	Plug Male Pins	Keyed	3.2 mm	2.5 mm

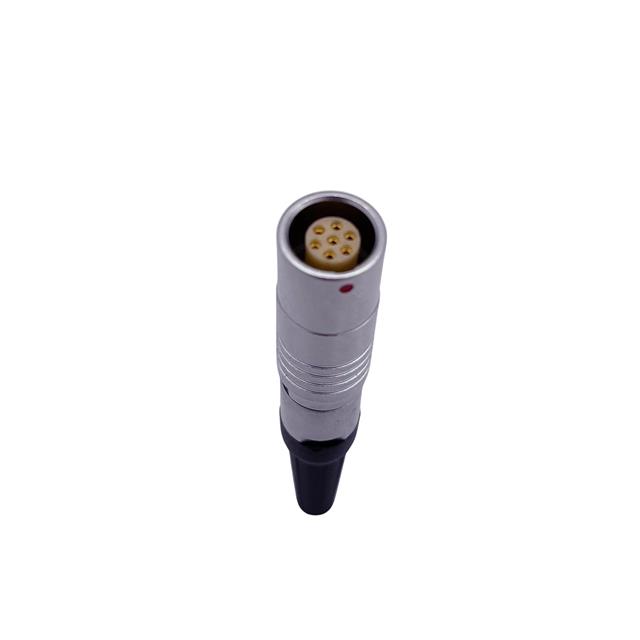

NorComp Inc. 821B007-273L501	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.205 in 5.2 mm	0.169 " 4.3 mm	315 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Receptacle Female Sockets	Keyed
NorComp Inc. 821B006-173L301	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.126 in	0.098 in	350 VDC	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Plug Male Pins	Keyed	3.2 mm	2.5 mm
NorComp Inc. 821B007-173L301	Free Hanging (In-Line)	Brass Chrome	Push-Pull	Brass	Gold	-40 C	200 °C	0.126 in	0.098 in	315 V	7 µin	0.178 µm	IP50 - Dust Protected	Metal	Polyphenylene Sulfide (PPS)	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Plug Male Pins	Keyed	3.2 mm	2.5 mm
