780-M15 Series

Catalog

CONN D-SUB HD PLUG 15POS PNL MNT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Dielectric Material	Current Rating (Amps)	Termination	Ingress Protection	Number of Rows [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Contact Finish	Material Flammability Rating	Contact Type	Features	Connector Type	Contact Finish Thickness	Mounting Type	Connector Style	Flange Feature	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]
NorComp Inc. 780-M15-113R051	-55 C	105 ░C	Brass	Black	Polyamide (PA6T) Nylon 6T	3 A	Solder	IP67 - Dust Tight Waterproof	3	(DE E) High Density	1	Nickel Plated Steel	Gold	UL94 V-0	Signal	Board Lock Grounding Indents	Plug Male Pins	Flash	Panel Mount Through Hole	D-Sub High Density	Board Side (4-40)	15

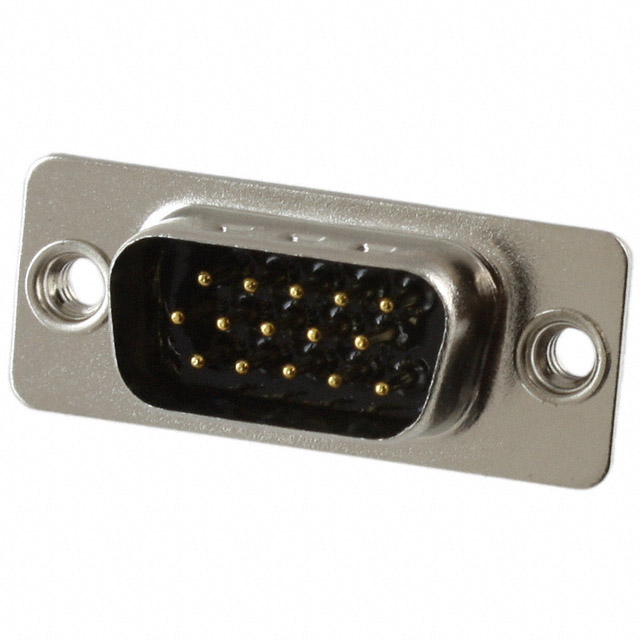

NorComp Inc. 780-M15-103L011	-55 C	105 ░C	Brass	Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A		IP67 - Dust Tight Waterproof	3	(DE E) High Density	1	Nickel Plated Steel	Gold	UL94 V-0	Signal	Grounding Indents	Plug Male Pins	Flash	Panel Mount	D-Sub High Density	Cable Side (4-40)	15	24 AWG	28 AWG
NorComp Inc. 780-M15-103L001	-55 C	105 ░C	Brass	Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A		IP67 - Dust Tight Waterproof	3	(DE E) High Density	1	Nickel Plated Steel	Gold	UL94 V-0	Signal	Grounding Indents	Plug Male Pins	Flash	Panel Mount	D-Sub High Density	Housing/Shell (Unthreaded)	15	24 AWG	28 AWG
NorComp Inc. 780-M15-213R051	-55 C	105 ░C	Brass	Black	Polyamide (PA6T) Nylon 6T	3 A	Solder	IP67 - Dust Tight Waterproof	3	(DE E) High Density	1	Nickel Plated Steel	Gold	UL94 V-0	Signal	Board Lock	Receptacle Female Sockets	Flash	Panel Mount Through Hole	D-Sub High Density	Board Side (4-40)	15
