LCD300 Series
Manufacturer: Panduit Corp
Beta
⌘K

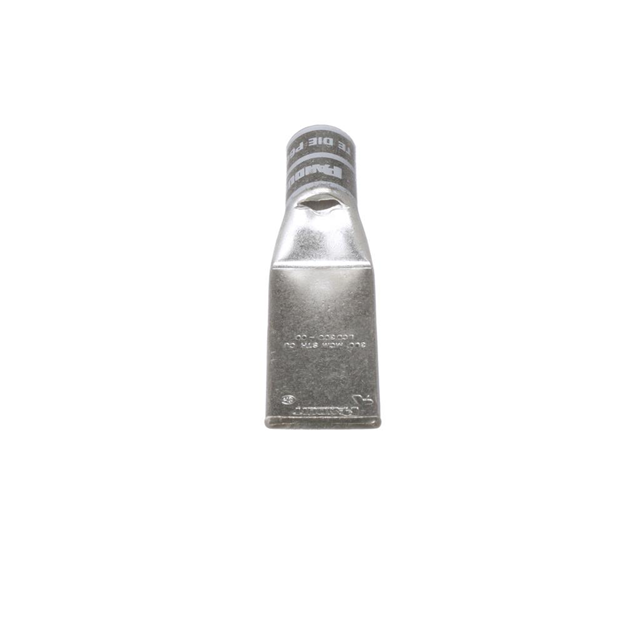

CONN TERM RECT TONG 300 MCM #1/2
| Part | Diameter - Ring ID | Diameter - Ring ID | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Contact Finish | Terminal Type | Stud/Tab Size | Tab Thickness | Tab Thickness | Termination | Insulation | Mounting Type | Color | Wire Gauge | Terminal Style | Width - Outer Edges [x] | Width - Outer Edges [x] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 13.46 mm | 0.53 in | 0.65 in | 16.51 mm | 20.57 mm | 0.81 in | Copper | Electro-Tin | Rectangular Tongue | 0.5 Stud | 4.06 mm | 0.16 in | Barrel Crimp | Non-Insulated | Free Hanging (In-Line) Right Angle | White | 300 MCM (kcmil) | Two Stud Holes | 30.23 mm | 1.19 in | ||||
 Panduit Corp | 0.65 in | 16.51 mm | 20.57 mm | 0.81 in | Copper | Electro-Tin | Rectangular Tongue | 0.375 Stud | 4.06 mm | 0.16 in | Barrel Crimp | Non-Insulated | Free Hanging (In-Line) | White | 300 MCM (kcmil) | Two Stud Holes | 30.23 mm | 1.19 in | 10.41 mm | 0.41 " | ||||
Panduit Corp | 0.65 in | 16.51 mm | 20.57 mm | 0.81 in | Copper | Electro-Tin | Rectangular Tongue | 0.375 Stud | 4.06 mm | 0.16 in | Barrel Crimp | Non-Insulated | Free Hanging (In-Line) Right Angle | White | 300 MCM (kcmil) | Two Stud Holes | 30.23 mm | 1.19 in | 10.41 mm | 0.41 " | ||||
 Panduit Corp | 0.65 in | 16.51 mm | 20.57 mm | 0.81 in | Copper | Electro-Tin | Rectangular Tongue | 4.06 mm | 0.16 in | Barrel Crimp | Non-Insulated | Free Hanging (In-Line) | White | 300 MCM (kcmil) | No Stud Hole | 30.23 mm | 1.19 in | 4.92 " | 124.97 mm |
