501864 Series
Manufacturer: Molex
Beta
⌘K
0.50MM PITCH EASY-ON FFC/FPC-TO-BOARD CONNECTOR, RECEPTACLE HOUSING ASSEMBLY, RIGHT-ANGLE, SURFACE MOUNT, WITHOUT GROUNDING TERMINALS, GOLD (AU) PLATING, 30 CIRCUITS

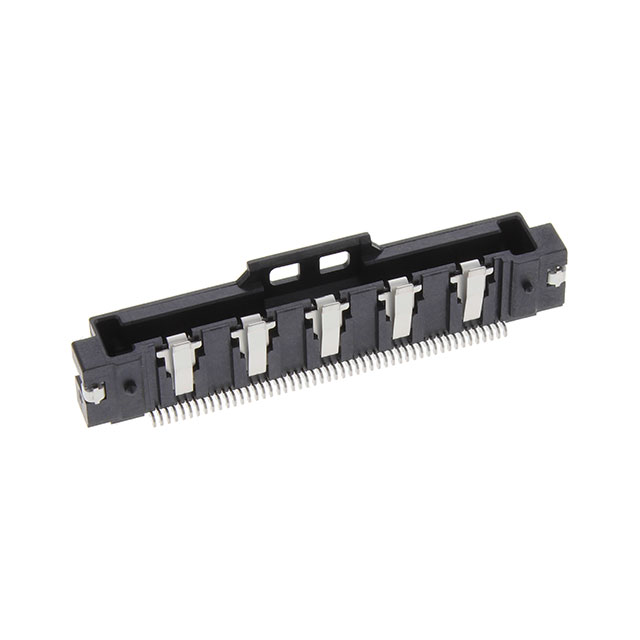

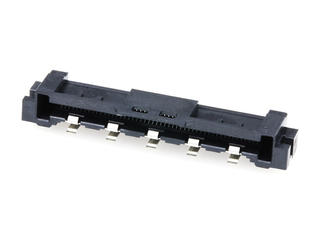

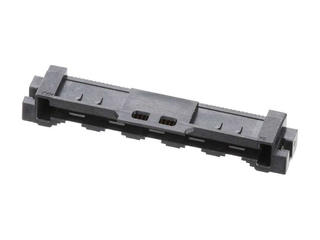

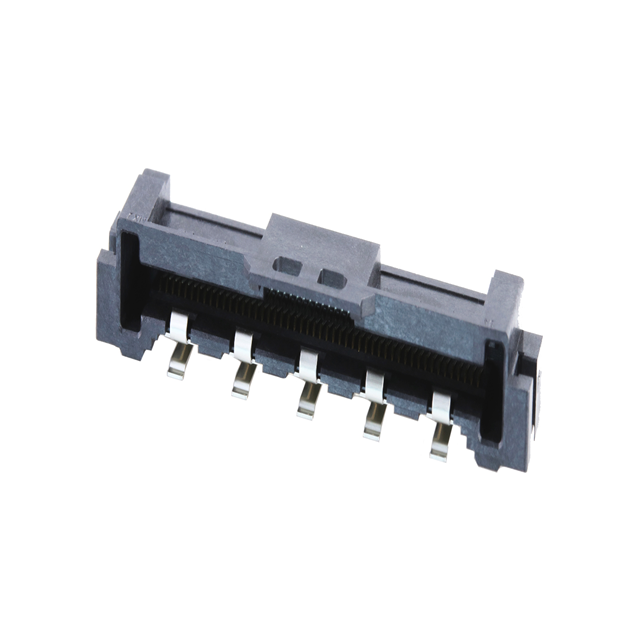

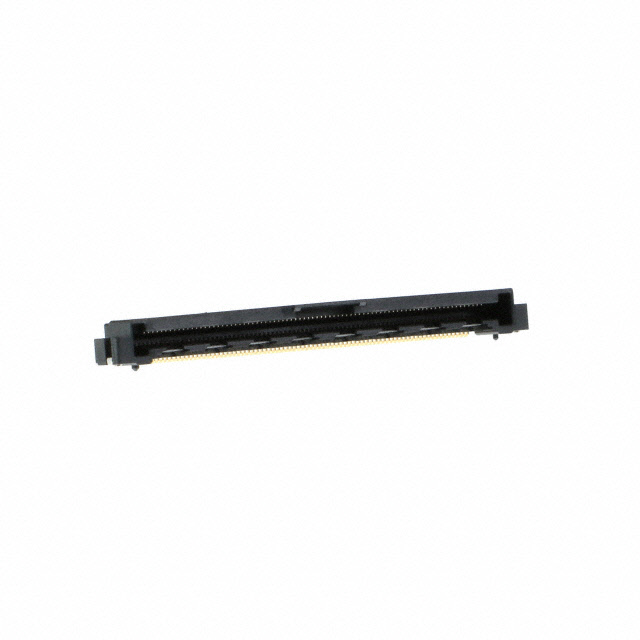

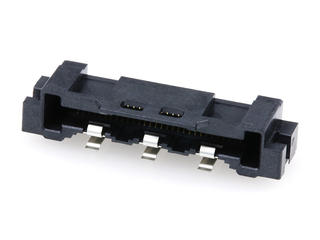

| Part | Housing Color | Mating Cycles | Current Rating (Amps) | Connector/Contact Type | Material Flammability Rating | Cable End Type | Contact Finish | Housing Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Material | Height Above Board [z] | Height Above Board [z] | Mounting Type | Pitch | Pitch | Features | Flat Flex Type | Termination | FFC, FCB Thickness | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 20 | 0.5 A | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 30 | 85 °C | -40 C | 50 V | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock |
 Molex | Black | 20 | 0.5 A | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 50 | 85 °C | -40 C | 50 V | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock |
 Molex | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 30 | 85 °C | -40 C | 50 V | Phosphor Bronze | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock | |||
 Molex | Contacts Bottom | UL94 V-0 | Notched | Tin Bismuth | Glass Filled Liquid Crystal Polymer (LCP) | 40 | 85 °C | -40 C | 50 V | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock | |||
 Molex | Black | Contacts Bottom | UL94 V-0 | Notched | Tin Bismuth | Glass Filled Liquid Crystal Polymer (LCP) | 50 | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock | |||||
 Molex | Black | Contacts Bottom | UL94 V-0 | Notched | Tin Bismuth | Glass Filled Liquid Crystal Polymer (LCP) | 50 | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock | |||||
 Molex | Black | 20 | 0.5 A | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 80 | 85 °C | -40 C | 50 V | Copper Alloy | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock |
 Molex | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 40 | 105 ░C | -40 C | 50 V | Phosphor Bronze | 4.85 mm | 0.191 " | Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC FPC | Solder | 0.3 mm | Slide Lock | |||
 Molex | Black | 20 | 0.5 A | Contacts Bottom | UL94 V-0 | Notched | Gold | Glass Filled Liquid Crystal Polymer (LCP) | 50 | 105 ░C | -40 C | 50 V | Phosphor Bronze | 4.85 mm | 0.191 " | Right Angle Surface Mount | 0.02 " | 0.5 mm | Board Guide Solder Retention | FFC | Solder | 0.3 mm | Slide Lock |
